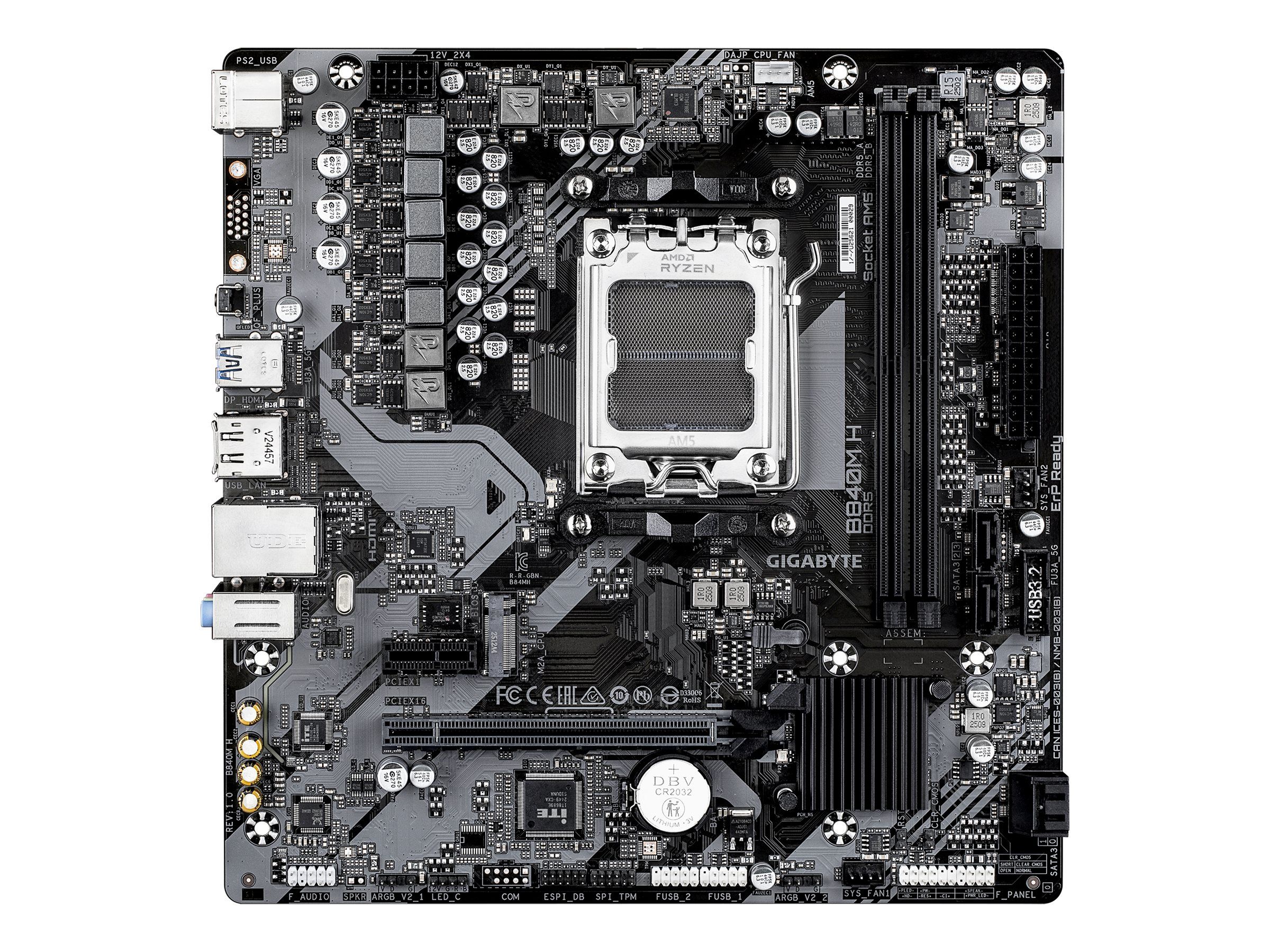

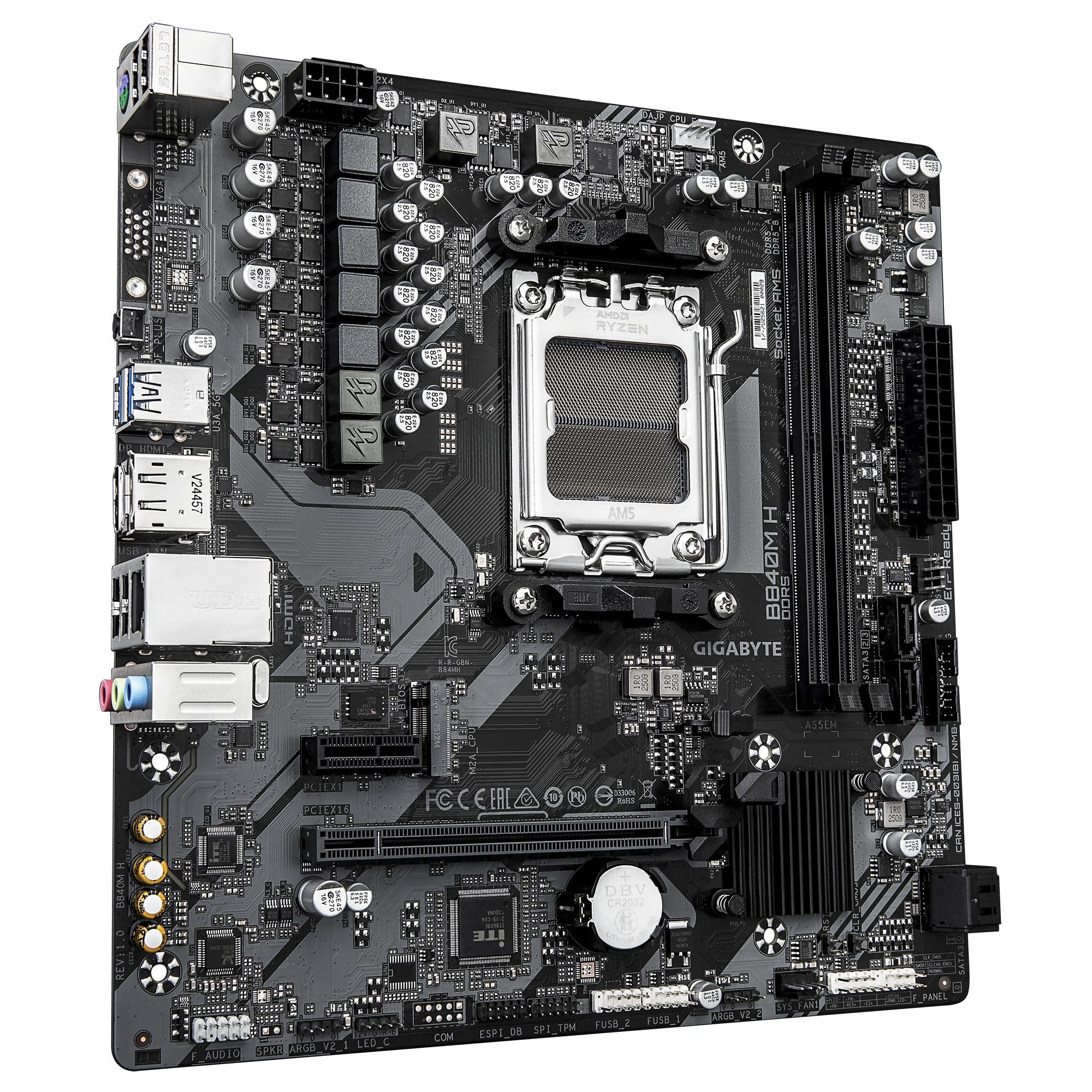

Gigabyte B840M H, AM5, AMD B840, µATX
81,99 €
3–5 Werktage
Produktnummer:
20041422
GTIN/EAN:
4719331877880
Hersteller:
Gigabyte
Herstellernummer:
B840M H
Verantwortlichkeit in der EU:
Gigabyte
Am Stadtrand 63
22047 Hamburg
Deutschland
Am Stadtrand 63
22047 Hamburg
Deutschland
Produktinformationen "Gigabyte B840M H, AM5, AMD B840, µATX"
| Sockel: | AM5 Sockel |
| Prozessor: | AMD Ryzen™ 9000 Series Processors AMD Ryzen™ 8000 Series Processors AMD Ryzen™ 7000 Series Processors |
| Chipsatz: | AMD B840 |
| Speicher: | Support for DDR5 7200(OC)/7000(OC)/6800(OC)/6666(OC)/6600(OC)/6400(OC)/6200(OC)/ 6000(OC)/5600(OC)/5200/4800/4400 MT/s memory modules 2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules |
| Grafik: | Integrated Graphics Processor with AMD Radeon™ Graphics support: - 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz |
| Steckplätze: | 1 x PCI Express x16 slot, integrated in the CPU: - AMD Ryzen™ 9000/7000 Series Processors support PCIe 4.0 x16 mode - AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode - AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode * The PCIEX16 slot can only support a graphics card or an NVMe SSD. Chipset: - 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 |
| Storage: | 1 x M.2 connector, integrated in the CPU, supporting Socket 3, M key, type 2580/2280 SSDs: - AMD Ryzen™ 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs - AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs - AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices * RAID 5 is only available on AMD Ryzen™ 9000 Series Processors. RAID 0, RAID 1, and RAID 10 support for SATA storage devices |
| Sound: |
|
| LAN: | Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps) |
| USB: | CPU: - 2 x USB 3.2 Gen 1 ports on the back panel - 1 x USB 2.0/1.1 port on the back panel Chipset: - 2 x USB 3.2 Gen 1 ports available through the internal USB header - 7 x USB 2.0/1.1 ports (3 ports on the back panel, 4 ports available through the internal USB headers) |
| Interne I/O Anschlüsse: | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 2 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only) 1 x reset jumper 1 x Clear CMOS jumper |

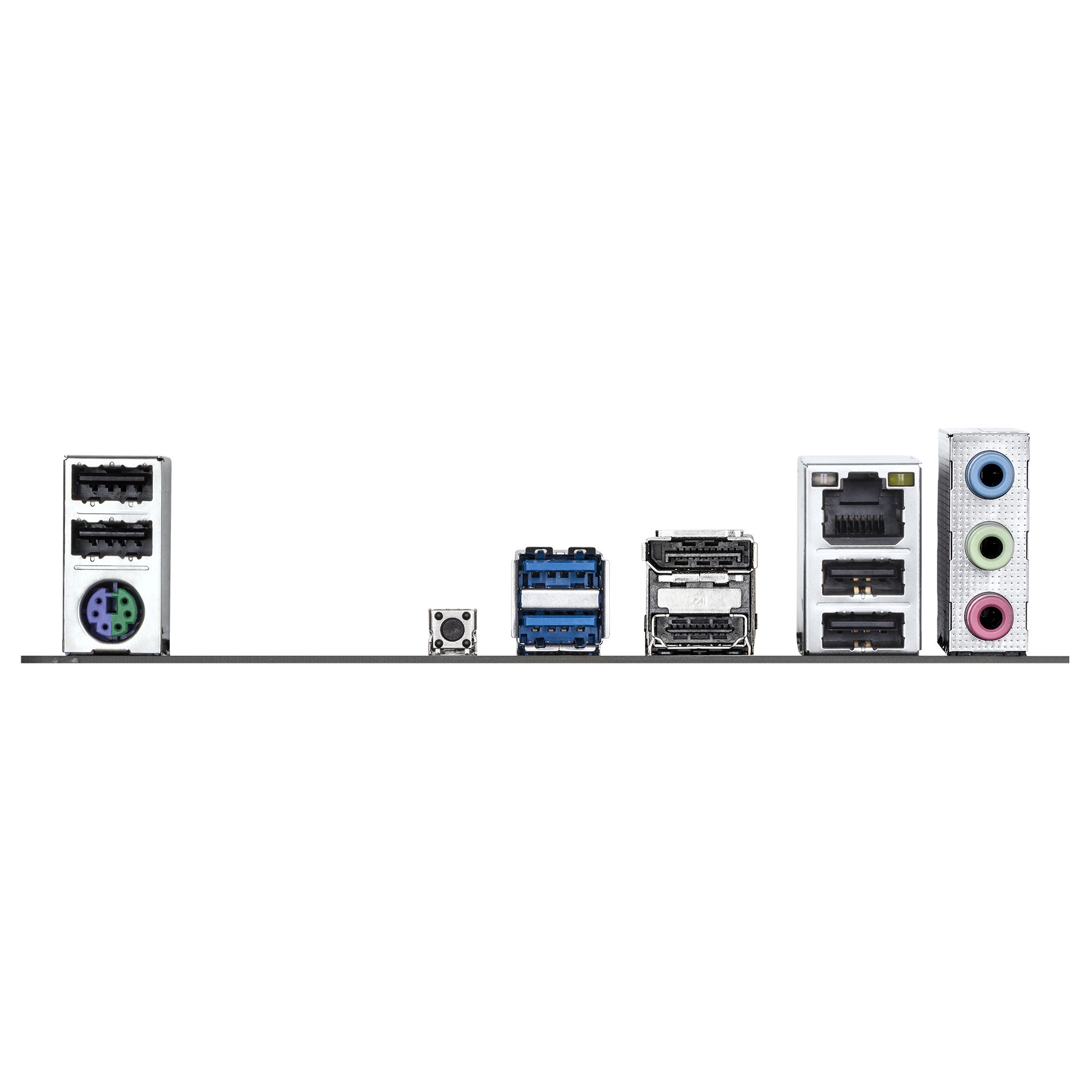

| Rückseite I/O Panel: | 4 x USB 2.0/1.1 ports 1 x PS/2 keyboard/mouse port 1 x Q-Flash Plus button 2 x USB 3.2 Gen 1 ports 1 x DisplayPort* 1 x HDMI port* 1 x RJ-45 port 3 x audio jacks |
| Formfaktor: | Micro-ATX |
| Abmessungen : | 23.0cm x 22.5cm |
| unterstützte BS : | - Microsoft® Windows® 10/11 64-bit |
