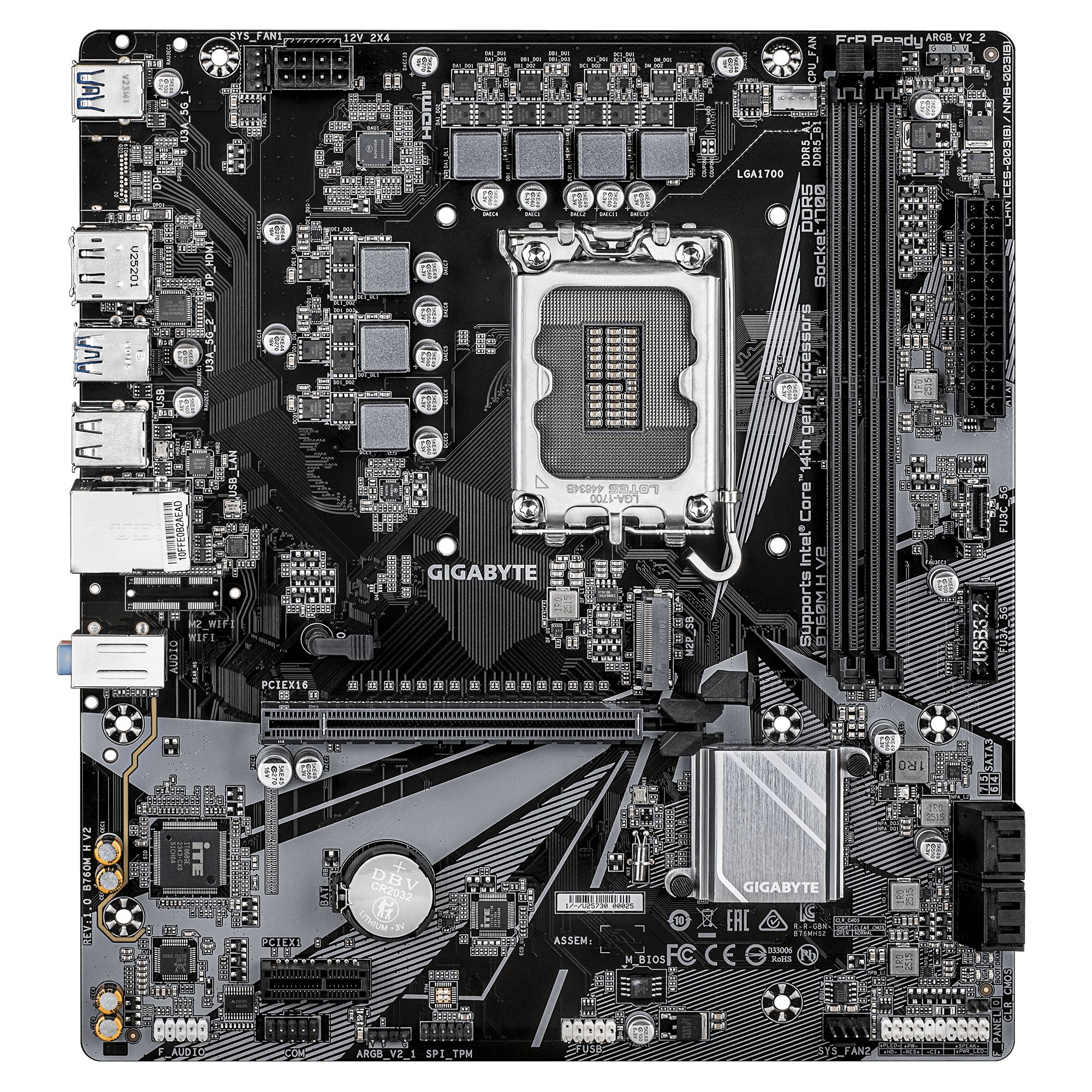

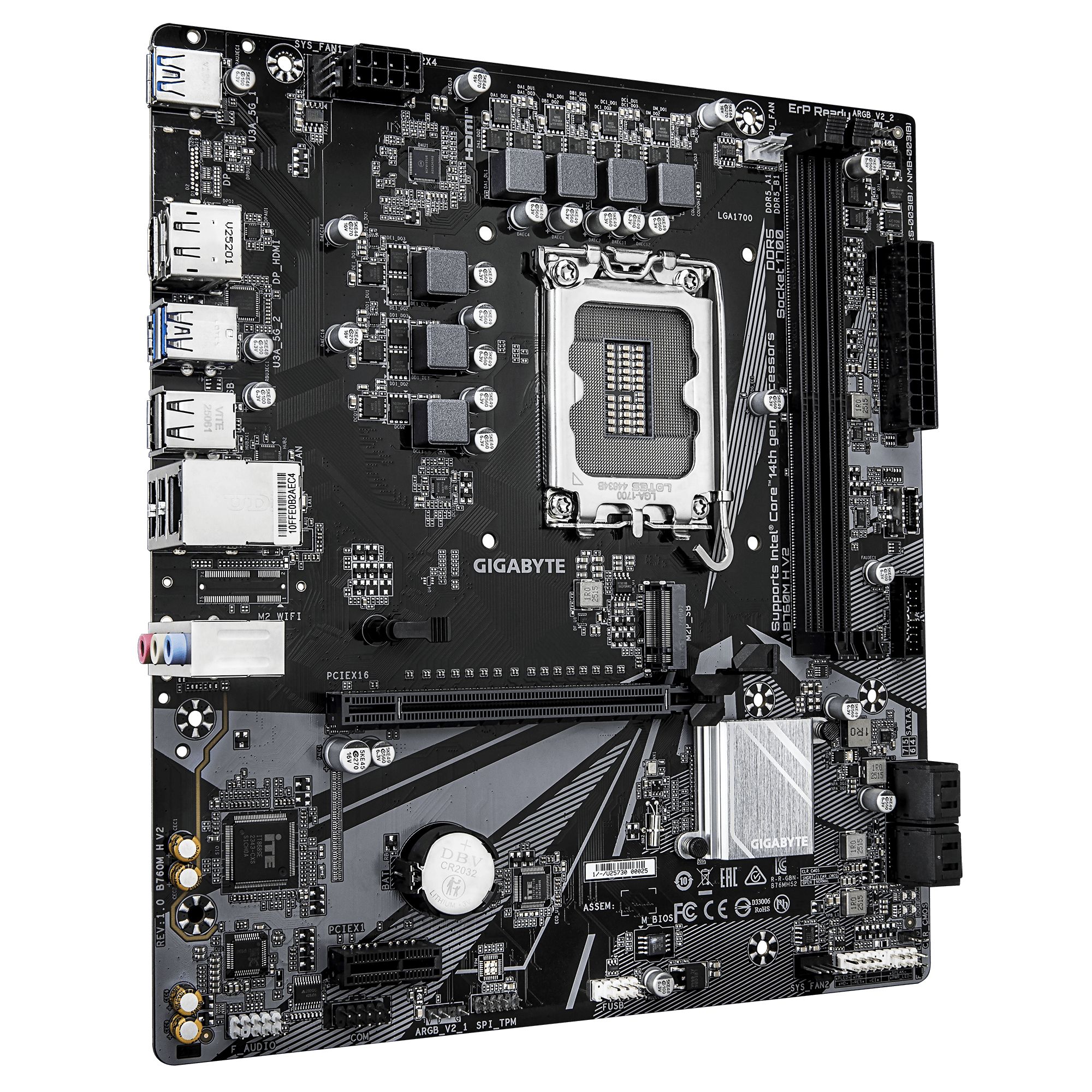

Gigabyte B760M H V2, DDR5, Intel B760, µATX
82,99 €
3–5 Werktage
Produktnummer:
20041427
GTIN/EAN:
4719331878054
Hersteller:
Gigabyte
Herstellernummer:
B760M H V2
Verantwortlichkeit in der EU:
Gigabyte
Am Stadtrand 63
22047 Hamburg
Deutschland
Am Stadtrand 63
22047 Hamburg
Deutschland
Produktinformationen "Gigabyte B760M H V2, DDR5, Intel B760, µATX"
| Prozessor: | 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors |
| Chipsatz: | Intel® B760 Express Chipset |
| Speicher: | Support for DDR5 8000(O.C.) /7800(O.C.) /7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules 2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
| Grafik: | Integrated Graphics Processor-Intel® HD Graphics support: - 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3 - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. (Graphics specifications may vary depending on CPU support.) |
| Steckplätze: | CPU: - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 Chipset: - 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 |
| Storage: | Chipset: - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) - 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices |
| Sound: |
|
| LAN: | Realtek® GbE LAN chip (1 Gbps/100 Gbps/10 Mbps) |
| USB: | Chipset: - 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header - 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) - 2 x USB 2.0/1.1 ports available through the internal USB header Chipset+USB 2.0 Hub: - 4 x USB 2.0/1.1 ports on the back panel |

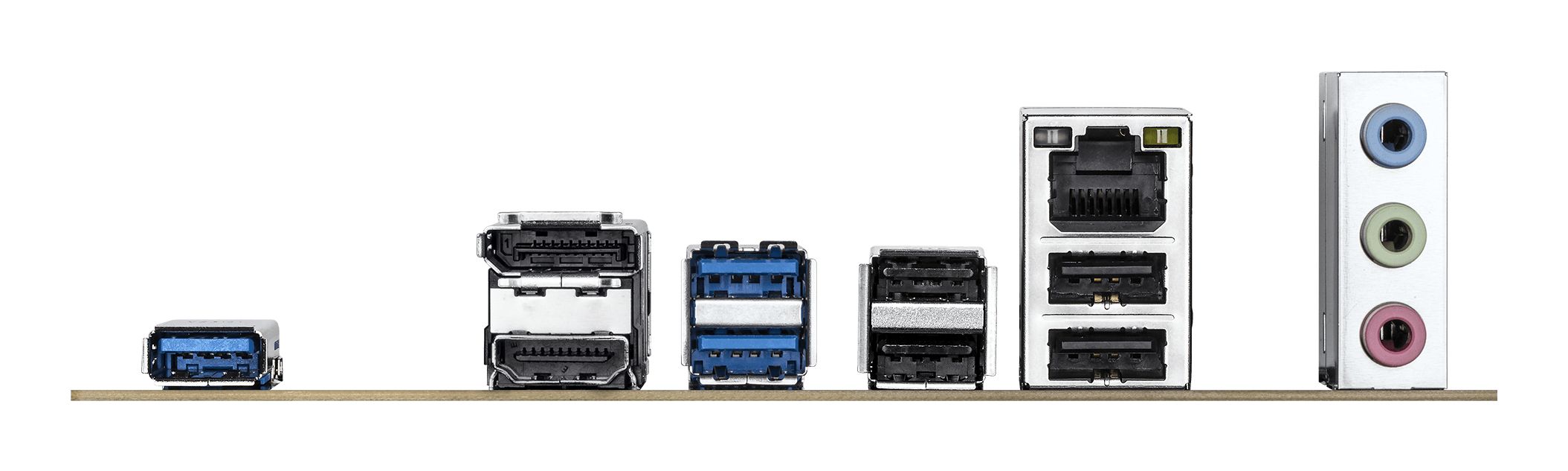

| Anschlüsse Rückseite: | 1 x DisplayPort (Note) 1 x HDMI port (Note) 3 x USB 3.2 Gen 1 port 4 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks |
| Anschlüsse intern: | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 2 x addressable RGB Gen2 LED strip headers 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 1 x USB 2.0/1.1 header 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only) 1 x serial port header 1 x Clear CMOS jumper |
| Formfaktor: | Micro-ATX Form Factor: 24.4cm x 22cm |
| unterstütze Betriebssysteme: | - Microsoft® Windows®10 64-bit / 11 64-bit |
