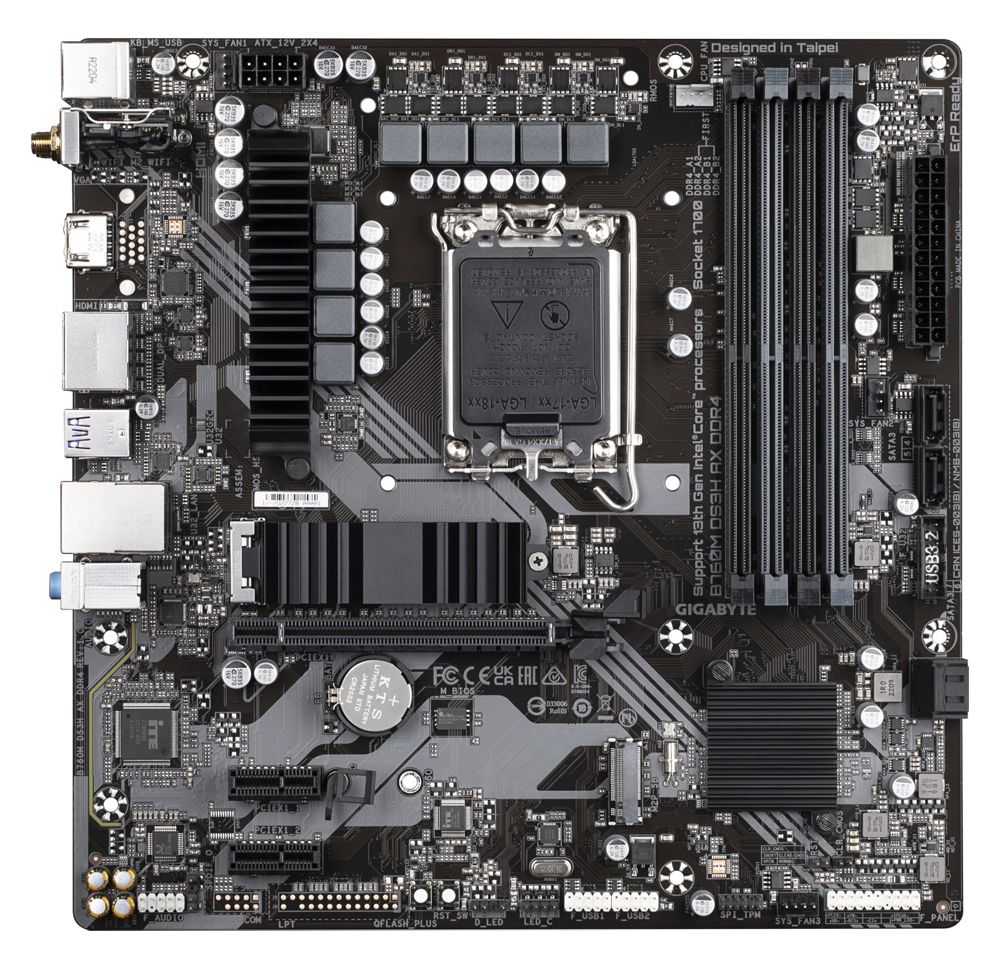

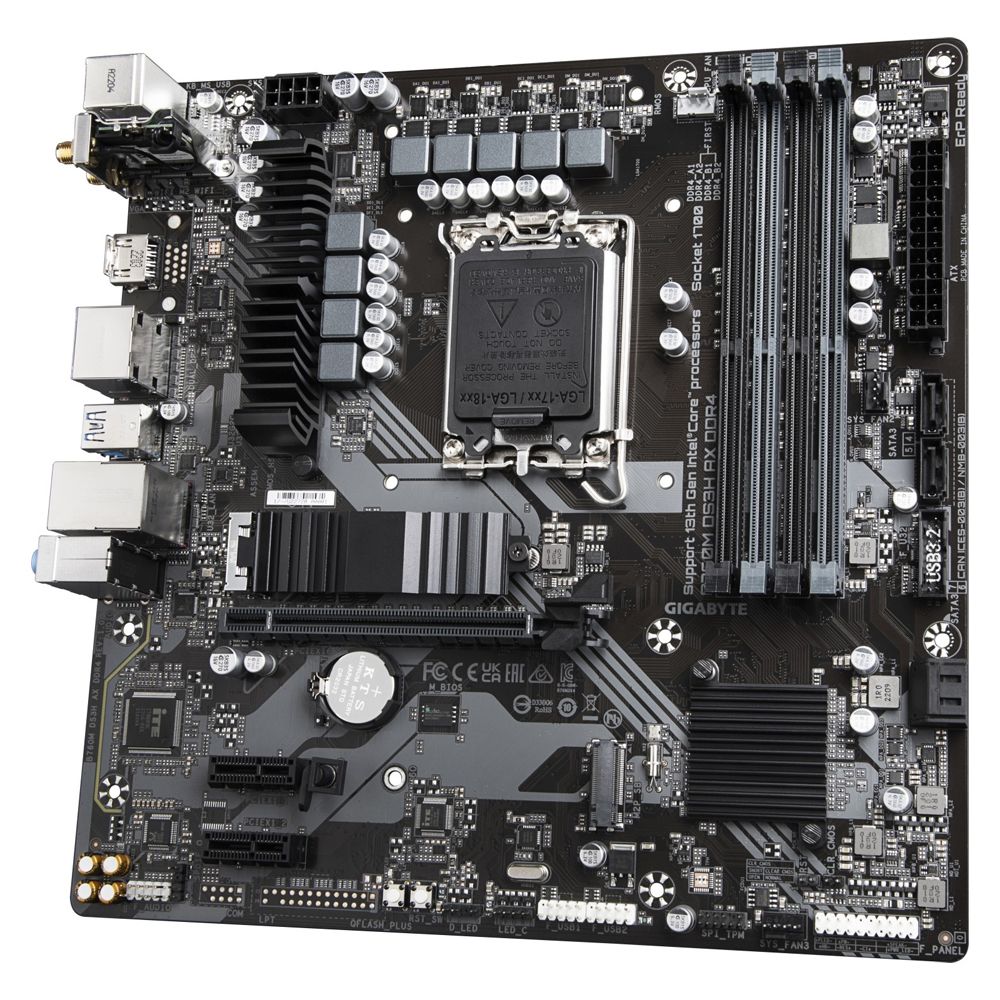

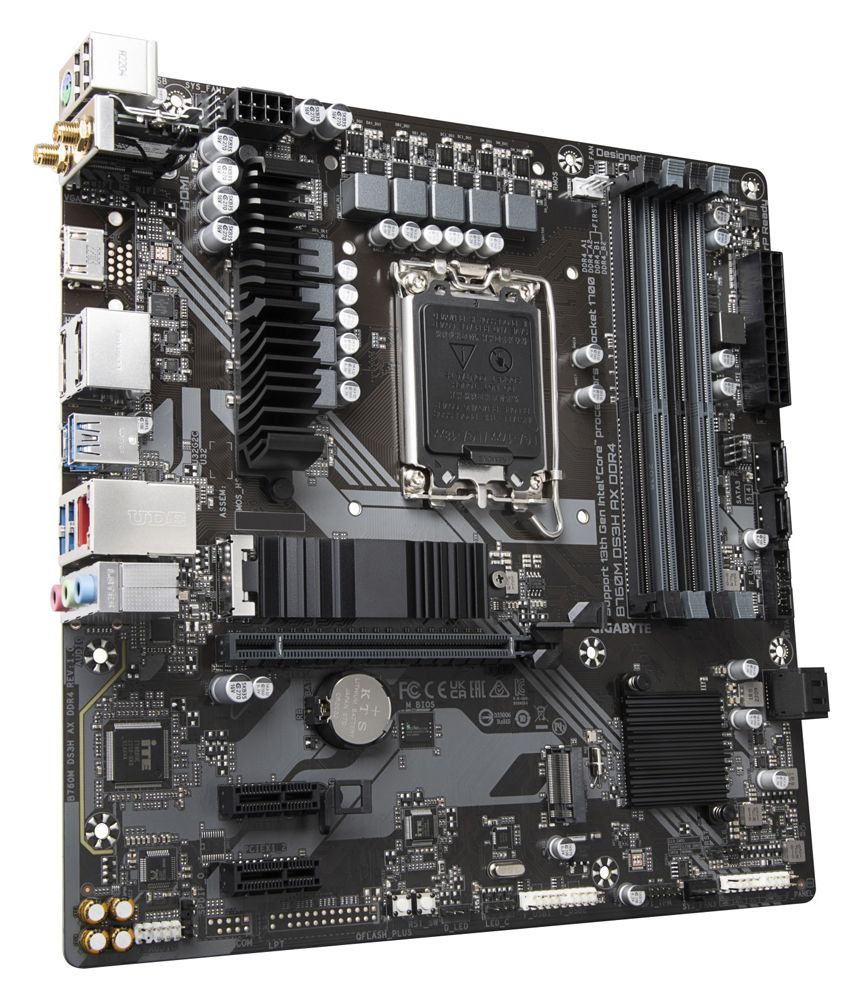

Gigabyte B760M DS3H AX DDR4, Intel B760, µATX

Bildergalerie überspringen
Gigabyte B760M DS3H AX DDR4, Intel B760, µATX
Gigabyte B760M DS3H AX DDR4, Intel B760, µATX
Gigabyte B760M DS3H AX DDR4, Intel B760, µATX
Gigabyte B760M DS3H AX DDR4, Intel B760, µATX
Gigabyte B760M DS3H AX DDR4, Intel B760, µATX

117,99 €

nicht lieferbar

Produktnummer: 20040477
GTIN/EAN: 4719331850869
Hersteller: Gigabyte
Herstellernummer: B760M DS3H AX DDR4
Verantwortlichkeit in der EU:
Gigabyte
Am Stadtrand 63
22047 Hamburg
Deutschland

Produktinformationen "Gigabyte B760M DS3H AX DDR4, Intel B760, µATX"

Prozessor:
  1. LGA1700 socket: Support for the 13th and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors
  2. L3 cache varies with CPU
Chipsatz: Intel® B760 Express Chipset
Speicher:
  1. Support for DDR4 5333(O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MT/s memory modules
  2. 4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
  3. Dual channel memory architecture
  4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
  5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  6. Support for Extreme Memory Profile (XMP) memory modules
Grafik: Integrated Graphics Processor-Intel® HD Graphics support:
  1. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
    * Support for HDMI 2.0 version and HDCP 2.3.
  2. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
    * Support for DisplayPort 1.2 version and HDCP 2.3
  3. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
    * Support for DisplayPort 1.2 version.
(Graphics specifications may vary depending on CPU support.)

Support for up to triple-display at the same time
Steckplätze:
  1. 1 x PCI Express x16 slot, running at x16
    (The PCIEX16 slot conforms to PCI Express 4.0 standard.)
  2. 2 x PCI Express x1 slots
    (The PCIEX1 slots conform to PCI Express 3.0 standard.)
Storage: CPU:
  1. 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
  1. 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
  2. 4 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Sound:
  1. Realtek® Audio CODEC
  2. High Definition Audio
  3. 2/4/5.1/7.1-channel
    * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
  4. Support for S/PDIF Out
LAN:
  1. Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module: AMD Wi-Fi 6E RZ608 (MT7921K)
  1. WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
  2. LUETOOTH 5.2
  3. Support for 11ax 80MHz wireless standard and up to 1.2 Gbps data rate
(Actual data rate may vary depending on environment and equipment.)
USB: Chipset:
  1. 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support
  2. 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
  3. 2 x USB 2.0/1.1 ports on the back panel
Chipset+2 USB 2.0 Hubs:
  1. 4 x USB 2.0/1.1 ports available through the internal USB headers
Anschlüsse Rückseite:
  1. 2 x USB 2.0/1.1 ports
  2. 1 x PS/2 keyboard/mouse port
  3. 2 x SMA antenna connectors (2T2R)
  4. 1 x HDMI port
  5. 2 x DisplayPorts
  6. 3 x USB 3.2 Gen 1 ports
  7. 1 x USB Type-C® port, with USB 3.2 Gen 2 support
  8. 1 x RJ-45 port
  9. 3 x audio jacks
Anschlüsse intern:
  1. 1 x 24-pin ATX main power connector
  2. 1 x 8-pin ATX 12V power connector
  3. 1 x CPU fan header
  4. 3 x system fan headers
  5. 1 x addressable LED strip header
  6. 1 x RGB LED strip header
  7. 2 x M.2 Socket 3 connectors
  8. 4 x SATA 6Gb/s connectors
  9. 1 x front panel header
  10. 1 x front panel audio header
  11. 1 x USB 3.2 Gen 1 header
  12. 2 x USB 2.0/1.1 headers
  13. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
  14. 1 x S/PDIF Out header
  15. 1 x Q-Flash Plus button
  16. 1 x reset button
  17. 1 x reset jumper
  18. 1 x Clear CMOS jumper
Formfaktor: Micro-ATX Form Factor: 24.4cm x 24.4cm
unterstütze Betriebssysteme: - Microsoft® Windows®10 64-bit / 11 64-bit
