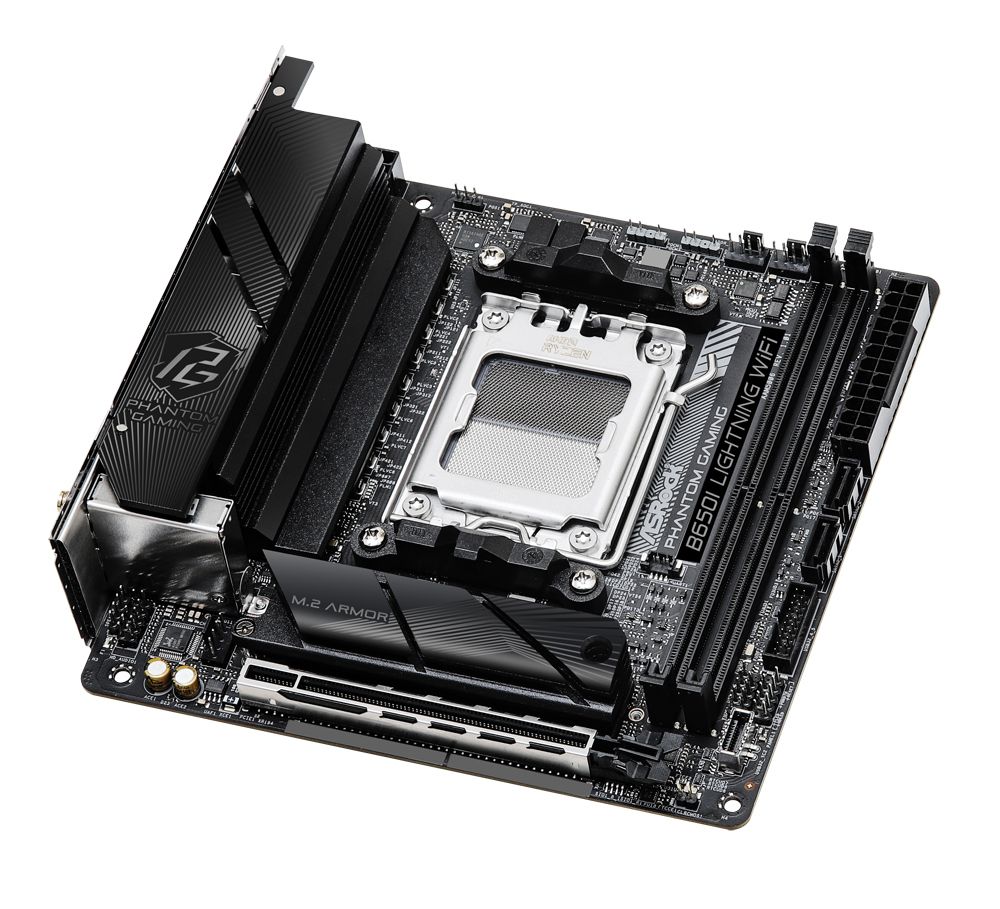

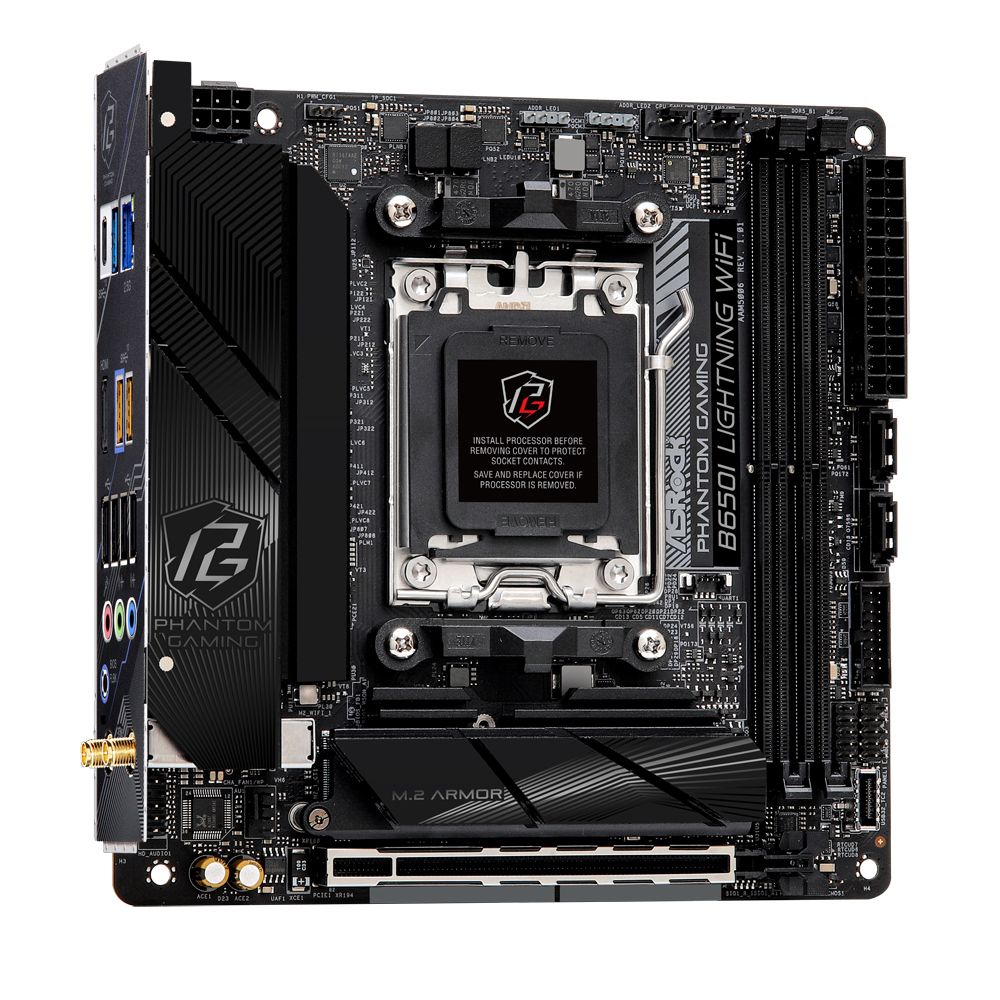

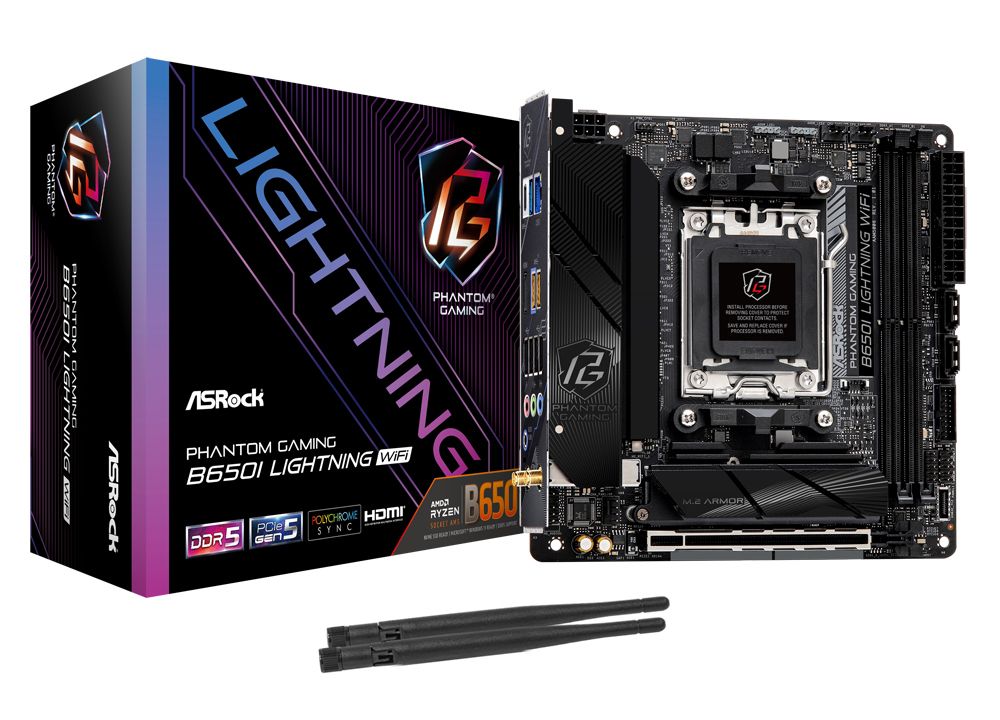

Asrock B650I Lightning WiFi, AM5, AMD B650, Mini-ITX
155,99 €
3–5 Werktage
Produktnummer:
20040824
GTIN/EAN:
4710483944253
Hersteller:
AsRock
Herstellernummer:
90-MXBMP0-A0UAYZ
Verantwortlichkeit in der EU:
AsRock
Bijsterhuizen 11-11
6546 AR Nijmegen
Niederlande
Email: sales@asrock.nl
Bijsterhuizen 11-11
6546 AR Nijmegen
Niederlande
Email: sales@asrock.nl
Produktinformationen "Asrock B650I Lightning WiFi, AM5, AMD B650, Mini-ITX"
| Sockel: | AM5 Sockel |
| Prozessor: |
|
| Chipsatz: | AMD B650 |
| Speicher: | - Dual Channel DDR5 Memory Technology - 2 x DDR5 DIMM Slots - Supports DDR5 ECC/non-ECC, un-buffered memory up to 7200+(OC)* - Max. capacity of system memory: 96GB - Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules |
| Grafik: | Integrated AMD RDNA™ 2 graphics (Actual support may vary by CPU) - 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz |
| Steckplätze: | CPU: - 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode* Chipset: - 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module* - 15μ Gold Contact in VGA PCIe Slot (PCIE1) * Supports NVMe SSD as boot disks |
| Storage: | CPU: - 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode* Chipset: - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode* - 2 x SATA3 6.0 Gb/s Connectors * Supports NVMe SSD as boot disks |
| RAID: | - Supports RAID 0 and RAID 1 for SATA storage devices - Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices* * Requires additional M.2 NVMe expansion cards to support RAID 10 |
| Sound: | - 7.1 CH HD Audio (Realtek ALC897 Audio Codec) - Nahimic Audio |
| LAN: | - 2.5 Gigabit LAN 10/100/1000/2500 Mb/s - Dragon RTL8125BG - Supports Phantom Gaming LAN Software - Smart Auto Adjust Bandwidth Control - Visual User Friendly UI - Visual Network Usage Statistics - Optimized Default Setting for Game, Browser, and Streaming Modes - User Customized Priority Control |
| WLAN: | - 802.11ax Wi-Fi 6E Module - Supports IEEE 802.11a/b/g/n/ac/ax - Supports Dual-Band 2x2 with extended 6GHz band* support - 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology - Supports Bluetooth 5.2 + High speed class II - Supports MU-MIMO |
| USB: | - 1 x USB 3.2 Gen2 Type-C (Rear) - 3 x USB 3.2 Gen2 Type-A (Rear) - 1 x USB 3.2 Gen1 Type-C (Front) - 2 x USB 3.2 Gen1 Type-A (Front) - 6 x USB 2.0 (4 Rear, 2 Front) * All USB ports support ESD Protection |
| Interne I/O Anschlüsse: | - 2 x Addressable LED Headers* - 2 x CPU/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)** - 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)*** - 1 x 24 pin ATX Power Connector - 1 x 8 pin 12V Power Connector (Hi-Density Power Connector) - 1 x Front Panel Audio Connector - 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) - 1 x Front Panel Type C USB 3.2 Gen1 Header |

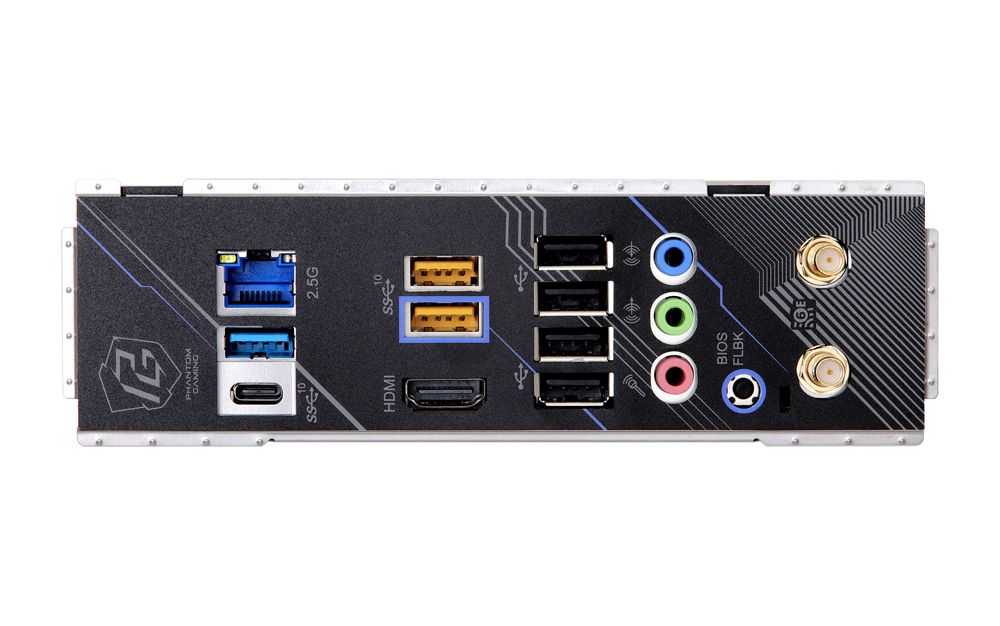

| Rückseite I/O Panel: | - 2 x Antenna Ports - 1 x HDMI Port - 3 x USB 3.2 Gen2 Type-A Ports (10 Gb/s) (USB32_23 are Lightning Gaming Ports.) - 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) - 4 x USB 2.0 Ports - 1 x RJ-45 LAN Port - 1 x BIOS Flashback Button - HD Audio Jacks: Line in / Front Speaker / Microphone |
| Formfaktor: | Mini-ITX |
| Abmessungen : | 17.0cm x 17.0cm |
| unterstützte BS : | - Microsoft® Windows® 10/11 64-bit |
