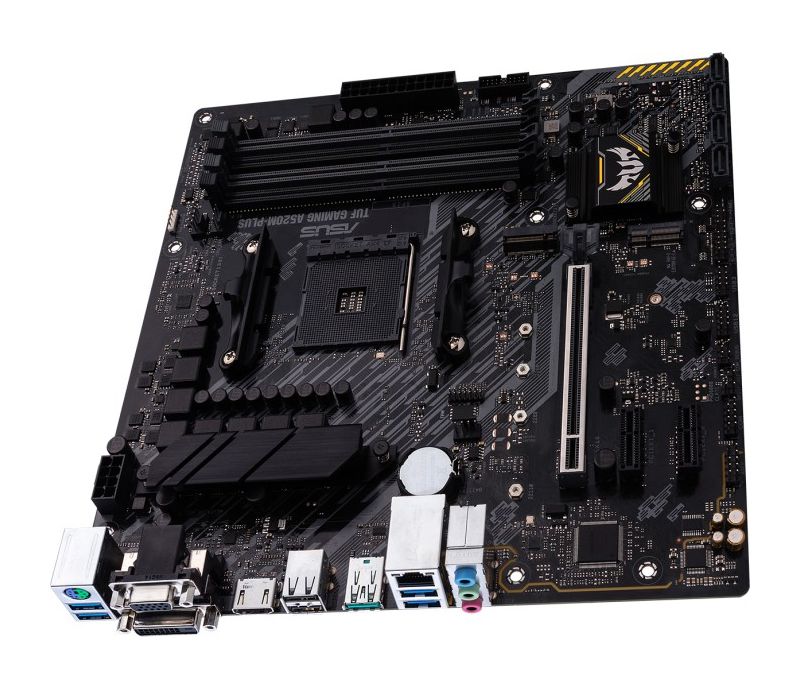

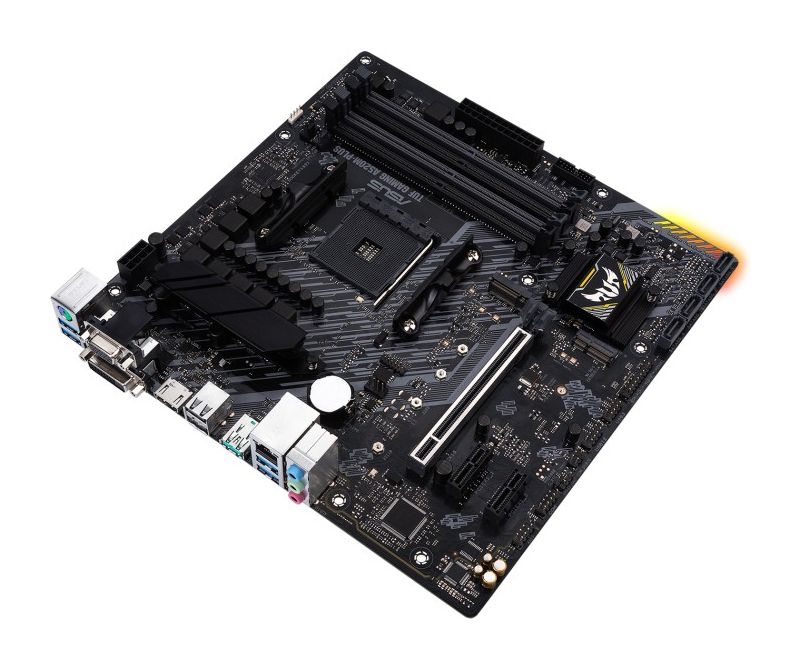

ASUS TUF Gaming A520M-Plus, AM4, AMD A520, µATX
97,90 €
nicht lieferbar
Harkortstrasse 21-23
40880 Ratingen
Email: LegalCompliance@asus.com
Produktinformationen "ASUS TUF Gaming A520M-Plus, AM4, AMD A520, µATX"
| Sockel: | AM4 |
| Prozessor: | - Supports 3rd Gen AMD AM4 Ryzen™ / future AMD Ryzen™ Processors (3000 and 4000 Series Processors) |
| Chipsatz: | - AMD A520 |
| Speicher: | 4 x DIMM, Max. 128GB, DDR4 4800(O.C.)/4600(O.C)/4466(O.C.)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory * Dual Channel Memory Architecture ECC Memory (ECC mode) support varies by CPU. * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). * The maximum memory frequency supported varies by processor |
| Grafik: | Integrated Graphics in the 3rd Gen AMD Ryzen™ with Radeon™ Graphics Processors |
| Steckplätze: | 3rd Gen AMD Ryzen™ and 3rd Gen AMD Ryzen™ with Radeon™ Graphics Processors |
| Storage: | Total supports 1 x M.2 slot(s) and 4 x SATA 6Gb/s ports |
| Sound: | Realtek ALC887 7.1 Surround Sound High Definition Audio CODEC - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback Audio Feature : - Audio Shielding - Dedicated audio PCB layers - Premium Japanese audio capacitors * Choose the chassis with HD audio module in front panel to support 8-channel audio output. |
| LAN: | Realtek L8200A 1Gb Ethernet TUF LANGuard |
| USB Ports: | Rear USB Port ( Total 7 ) 1 x USB 3.2 Gen 2 port(s)(1 x Type-A) 4 x USB 3.2 Gen 1 port(s)(4 x Type-A) 2 x USB 2.0 port(s)(2 x Type-A) Front USB Port ( Total 5 ) 2 x USB 3.2 Gen 1 port(s)(2 x Type-A) 3 x USB 2.0 port(s)(3 x Type-A) |
| Interne I/O Anschlüsse: | 1 x CPU Fan connector(s) |

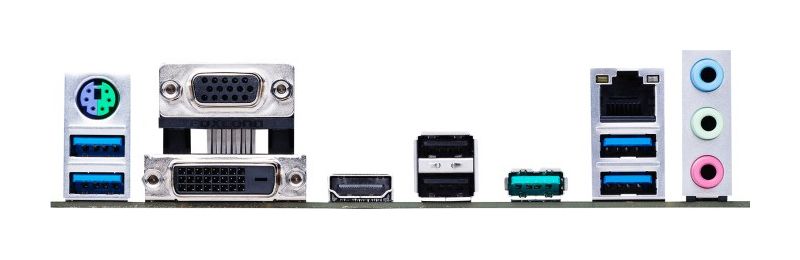

| Rückseite I/O Panel: | 1 x PS/2 keyboard/mouse combo port(s) 1 x DVI-D 1 x D-Sub 1 x HDMI 1 x LAN (RJ45) port(s) 1 x USB 3.2 Gen 2 (teal blue)Type-A, 4 x USB 3.2 Gen 1 (blue) Type-A 2 x USB 2.0 3 x Audio jack(s) |
| Formfaktor: | Micro ATX |
| Abmessungen : | 24.4 cm x 24.4 cm |
| unterstützte BS : | - Microsoft® Windows® 10 64-bit |
