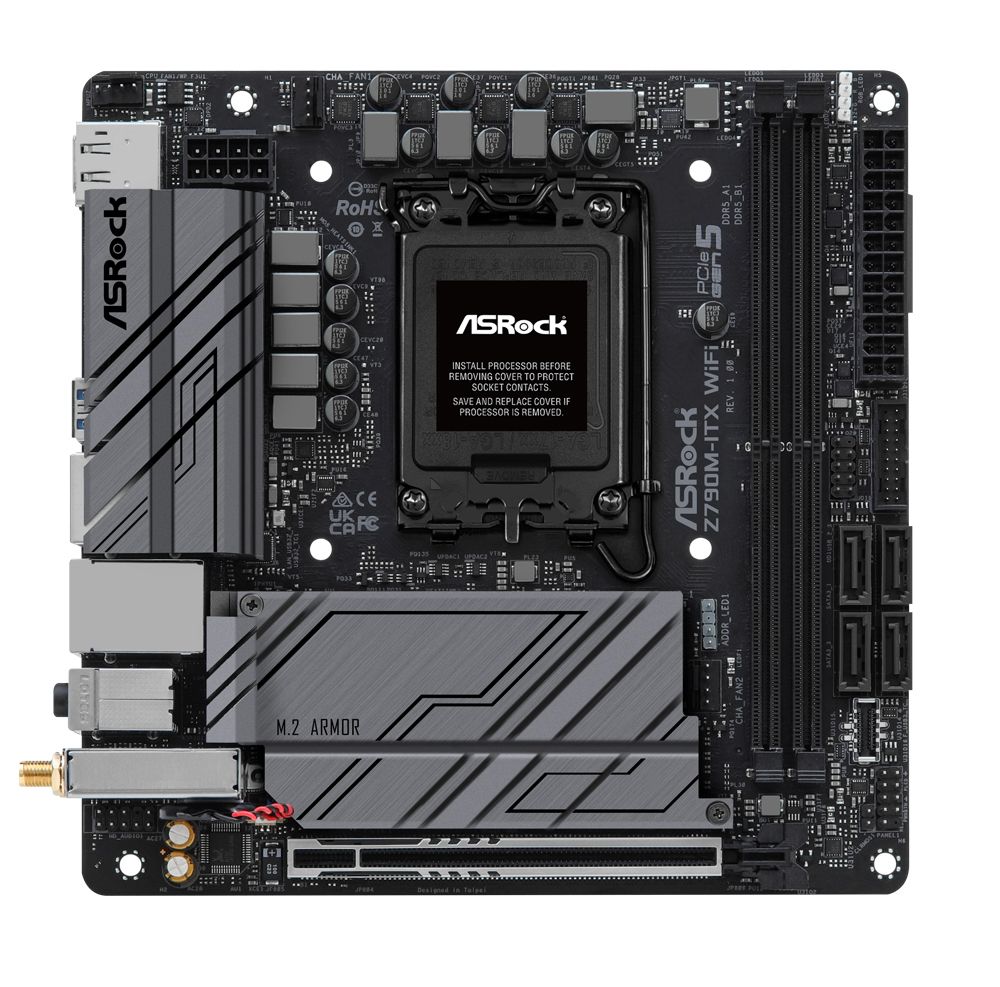

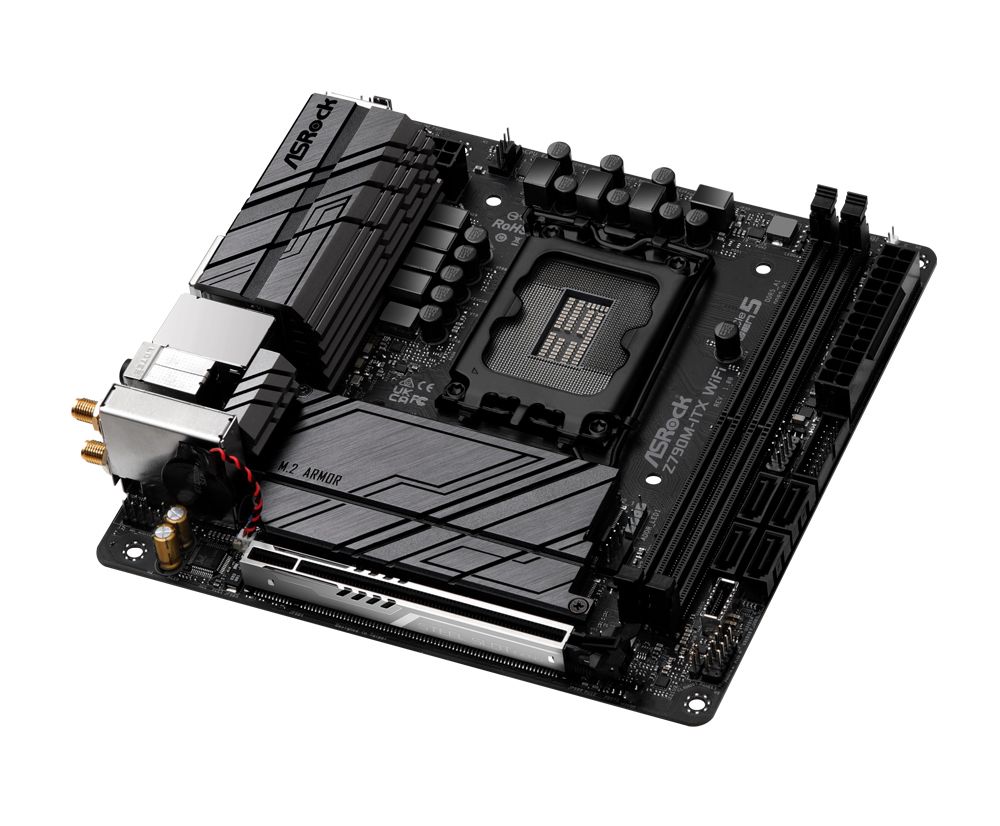

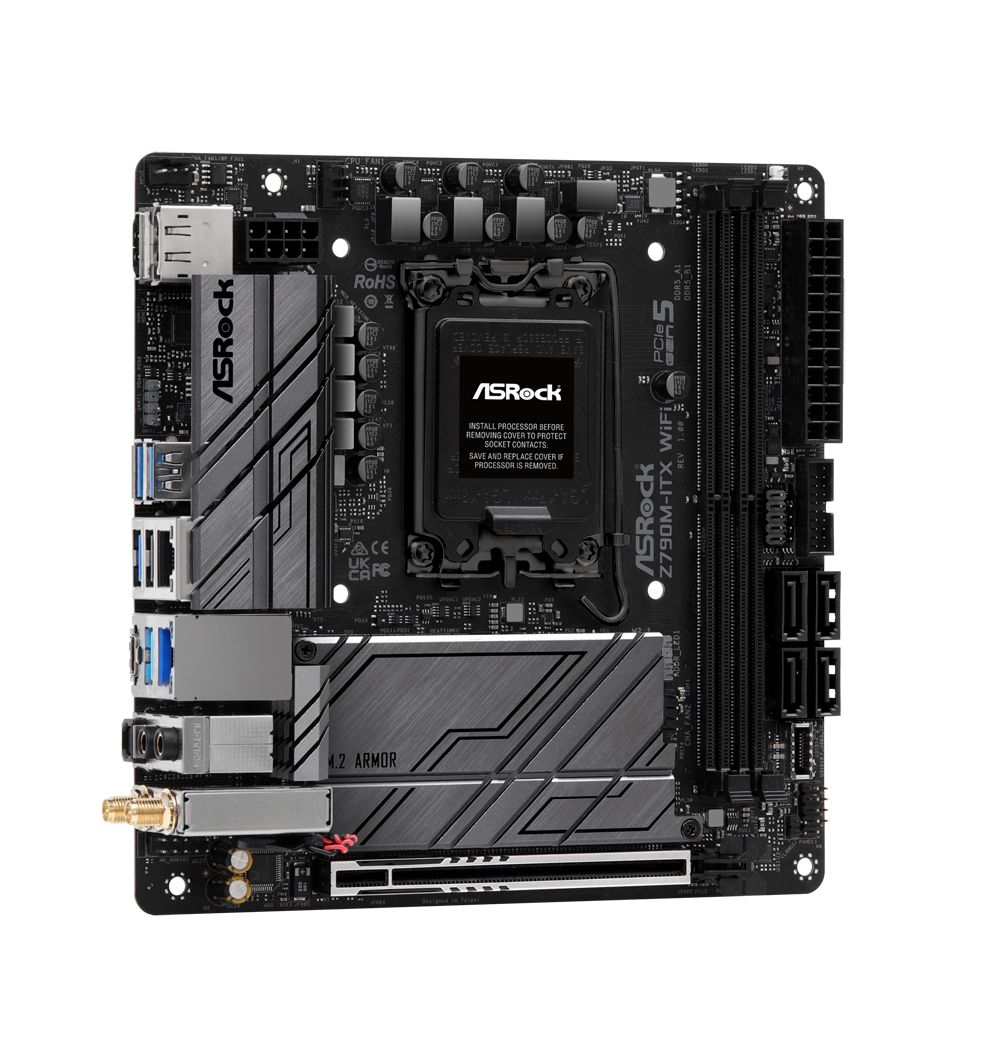

ASRock Z790M-ITX WiFi, DDR5, Intel Z790, Mini-ITX
192,90 €
3–5 Werktage
Bijsterhuizen 11-11
6546 AR Nijmegen
Niederlande
Email: sales@asrock.nl
Produktinformationen "ASRock Z790M-ITX WiFi, DDR5, Intel Z790, Mini-ITX"
| Prozessor: | - Supports 13th Gen & 12th Gen Intel® Core™ Processors (LGA1700) - Supports Intel® Hybrid Technology - Supports Intel® Turbo Boost Max 3.0 Technology - Supports Intel® Thermal Velocity Boost (TVB) - Supports Intel® Adaptive Boost Technology (ABT) |
| Chipsatz: | Intel® Z790 Express Chipset |
| Speicher: | - Dual Channel DDR5 Memory Technology - 2 x DDR5 DIMM Slots - Supports DDR5 non-ECC, un-buffered memory up to 6800+(OC)* - Max. capacity of system memory: 64GB - Supports Intel® Extreme Memory Profile (XMP) 3.0 *1DPC 1R Up to 6800+ MHz (OC), 5600 MHz Natively. 1DPC 2R Up to 5200+ MHz (OC), 5200 MHz Natively. |
| Grafik: | - Intel® Xe Graphics Architecture (Gen 12) - 1 x eDP 1.4, supports max. resolution up to Full HD 60Hz - 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz - 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz *Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated. |
| Steckplätze: | CPU: - 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode* Chipset: - 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/BT) *Supports PCIe riser cards to extend one x16 slot to two x8 slots Supports NVMe SSD as boot disks |
| Storage: | CPU: *Supports Intel® Volume Management Device (VMD) Supports NVMe SSD as boot disks |
| Sound: | - 7.1 CH HD Audio (Realtek ALC897 Audio Codec) - Nahimic Audio |
| LAN: | - 1 x 2.5 Gigabit LAN 10/100/1000/2500 Mb/s (Intel® I226V) - 1 x Gigabit LAN 10/100/1000 Mb/s (Intel® I219V) |

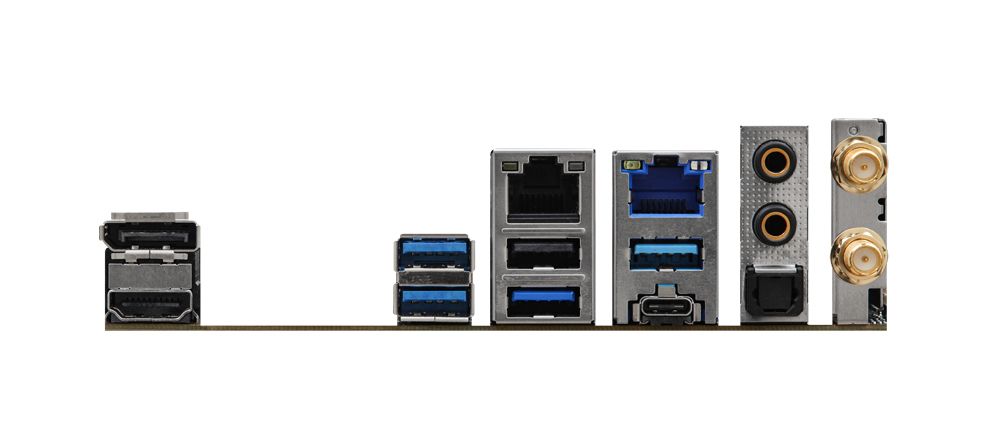

| Anschlüsse Rückseite: | - 2 x Antenna Ports - 1 x HDMI Port - 1 x DisplayPort 1.4 - 1 x Optical SPDIF Out Port - 4 x USB 3.2 Gen2 Type-A Ports (10 Gb/s) - 1 x USB 3.2 Gen2x2 Type-C Port (20 Gb/s) - 1 x USB 2.0 Port - 2 x RJ-45 LAN Ports - 1 x Line Out Jack (Gold Audio Jack) - 1 x Microphone Input Jack (Gold Audio Jack) |
| Anschlüsse intern: | - 1 x eDP Signal Connector - 1 x RGB LED Header* - 1 x Addressable LED Header** - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)*** - 2 x Chassis Fan Connectors (4-pin)**** - 1 x 24 pin ATX Power Connector - 1 x 8 pin 12V Power Connector (Hi-Density Power Connector) - 1 x Front Panel Audio Connector - 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) - 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)***** *Supports in total up to 12V/3A, 36W LED Strip **Supports in total up to 5V/3A, 15W LED Strip ***CPU_FAN1/WP supports the fan power up to 2A (24W). CPU_FAN1/WP can auto detect if 3-pin or 4-pin fan is in use. ****CHA_FAN1~2 support the fan power up to 1A (12W). *****Actual speed depends on USB devices and extension cable in the chassis. |
| Formfaktor: | Mini-ITX Form Factor: 17.0 cm x 17.0 cm |
| unterstütze Betriebssysteme: | - Microsoft® Windows®10 64-bit / 11 64-bit *Windows® 10 only supports version 21H2 or later |
