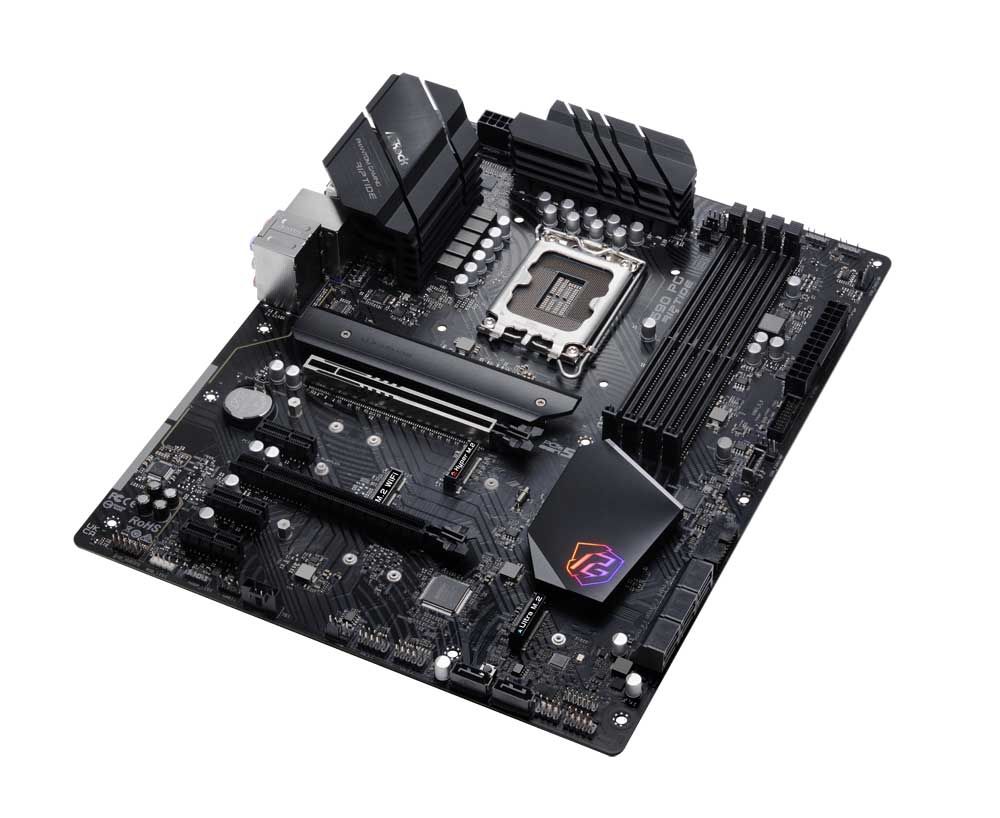

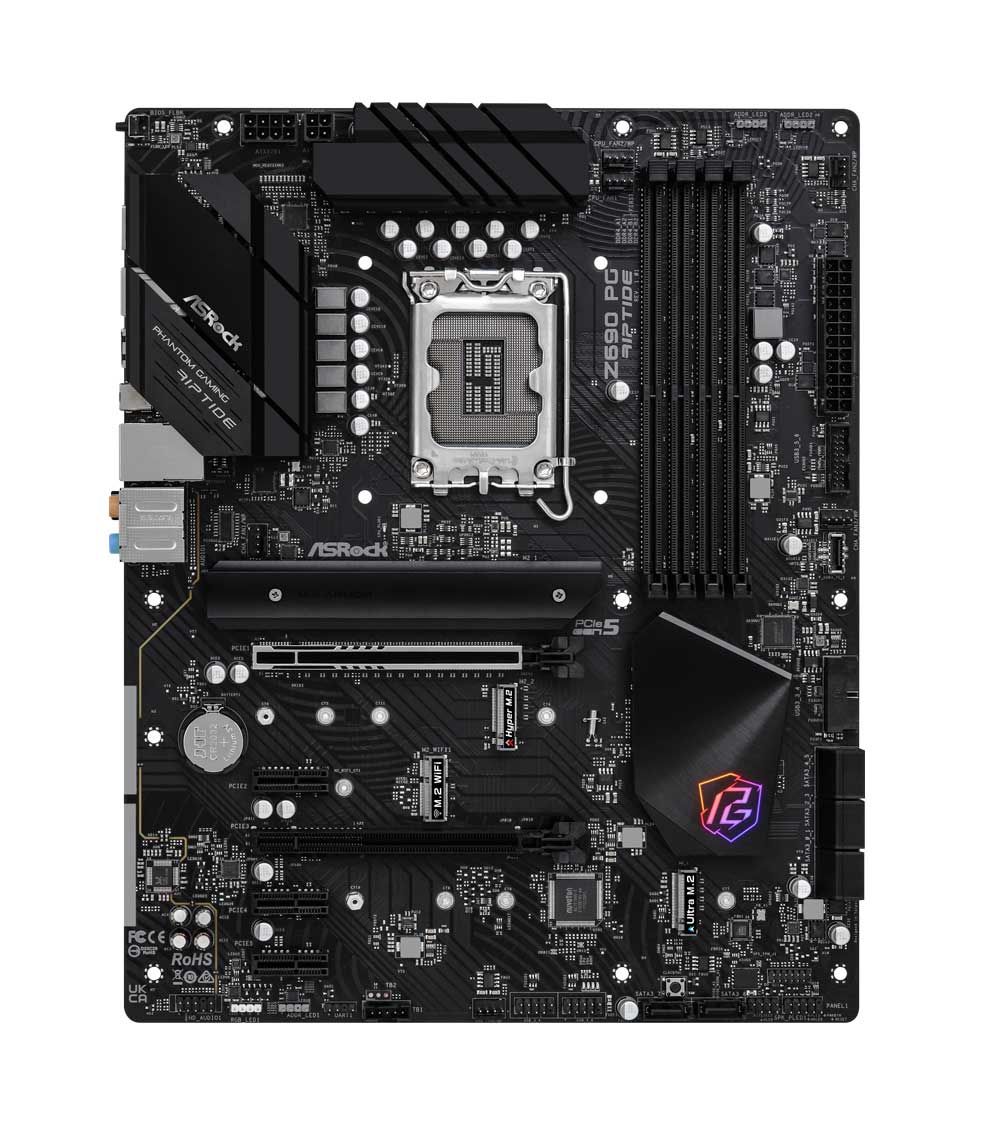

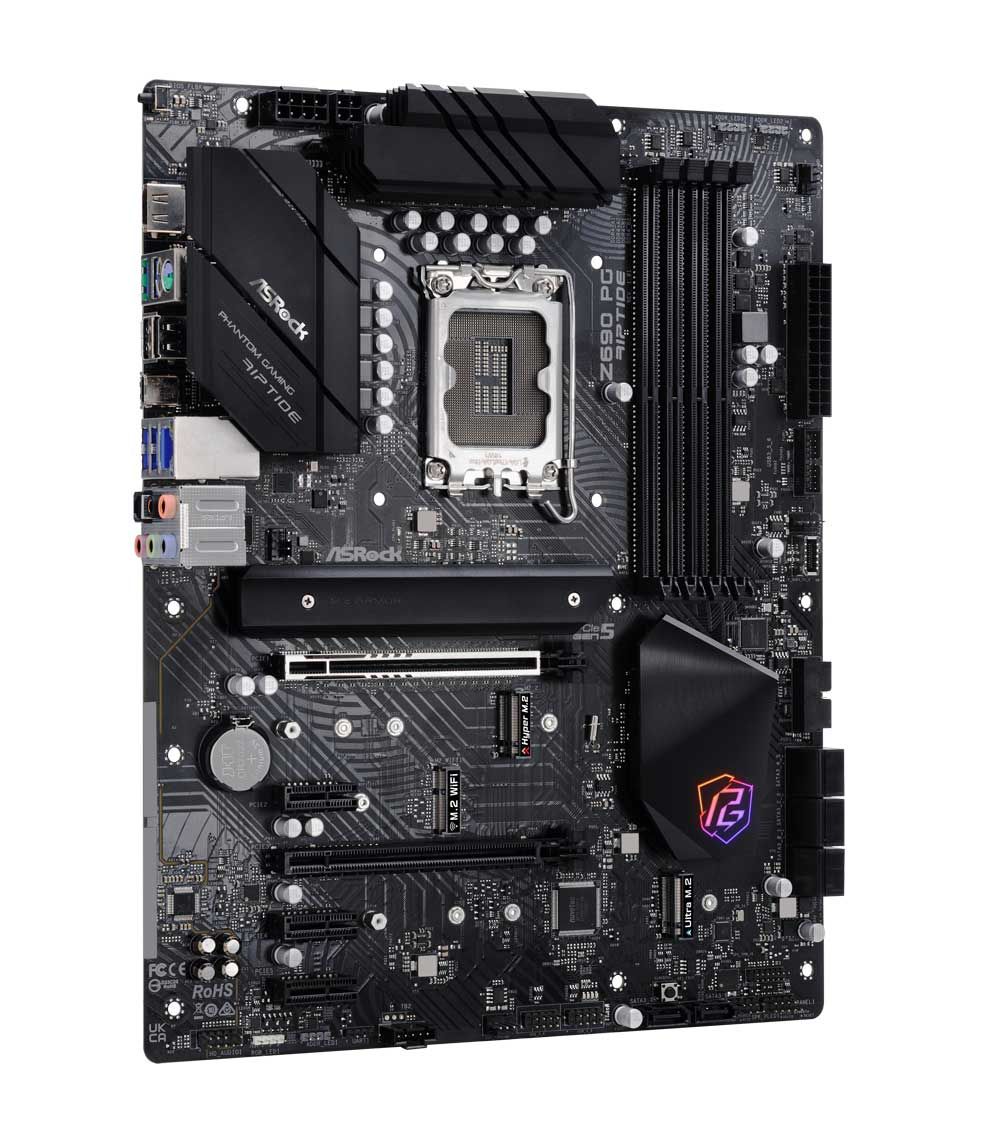

ASRock Z690 PG Riptide DDR4, Intel Z690 Chipsatz, ATX
128,90 €
nicht lieferbar
Produktnummer:
20039744
GTIN/EAN:
4710483936111
Hersteller:
AsRock
Herstellernummer:
90-MXBHQ0-A0UAYZ
Verantwortlichkeit in der EU:
AsRock
Bijsterhuizen 11-11
6546 AR Nijmegen
Niederlande
Email: sales@asrock.nl
Bijsterhuizen 11-11
6546 AR Nijmegen
Niederlande
Email: sales@asrock.nl
Produktinformationen "ASRock Z690 PG Riptide DDR4, Intel Z690 Chipsatz, ATX"
| Prozessor: | - Supports 12th Gen Intel® Core™ Processors (LGA1700) - Digi Power design - 13 Power Phase design - Supports Intel® Hybrid Technology - Supports Intel® Turbo Boost Max 3.0 Technology |
| Chipsatz: | Intel® Z690 Express Chipset |
| Speicher: | - Dual Channel DDR4 Memory Technology - 4 x DDR4 DIMM Slots - Supports DDR4 non-ECC, un-buffered memory up to 4800+(OC)* - Supports ECC UDIMM memory modules (operate in non-ECC mode) - Max. capacity of system memory: 128GB** - Supports Intel® Extreme Memory Profile (XMP) 2.0 *Supports DDR4 3200 natively. |
| Grafik: | - Intel® Xe Graphics Architecture (Gen 12) - Supports HDMI 2.1 TMDS Compatible with max. resolution up to 4K x 2K (4096x2160) @ 60Hz - Supports HDCP 2.3 with HDMI 2.1 TMDS Compatible Port *Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated. |
| Steckplätze: | - 2 x PCIe x16 Slots (PCIE1/PCIE3: single at Gen5x16 (PCIE1); dual at Gen5x16 (PCIE1) / Gen4x4 (PCIE3))* - 3 x PCIe Gen3x1 Slots - Supports AMD CrossFire™ - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVi (Integrated WiFi/BT) *Supports NVMe SSD as boot disks |
| Storage: | - 8 x SATA3 6.0 Gb/s Connectors* - 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode** - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode** - 1 x Ultra M.2 Socket (M2_3, Key M), supports type 2260/2280/22110 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes** *If M2_3 is occupied by a SATA-type M.2 device, SATA3_7 will be disabled. **Supports Intel® Optane™ Technology (M2_2 and M2_3 only) Supports Intel® Volume Management Device (VMD) Supports NVMe SSD as boot disks Supports ASRock U.2 Kit |
| Sound: | - 7.1 CH HD Audio (Realtek ALC897 Audio Codec) - Supports Surge Protection - Gold Audio Jacks - Nahimic Audio |
| LAN: | - 2.5 Gigabit LAN 10/100/1000/2500 Mb/s - Killer E3100G - Supports Killer LAN Software - Supports Wake-On-LAN - Supports Lightning/ESD Protection - Supports Energy Efficient Ethernet 802.3az - Supports PXE |
| USB: | - intern:
1x USB-C 3.0 Key-A Header (5Gb/s, Z690), 2x USB 3.0 Header (5Gb/s, 4x USB 3.0, Z690 via Hub ASM1074), 2x USB 2.0 Header (480Mb/s, 4x USB 2.0), |

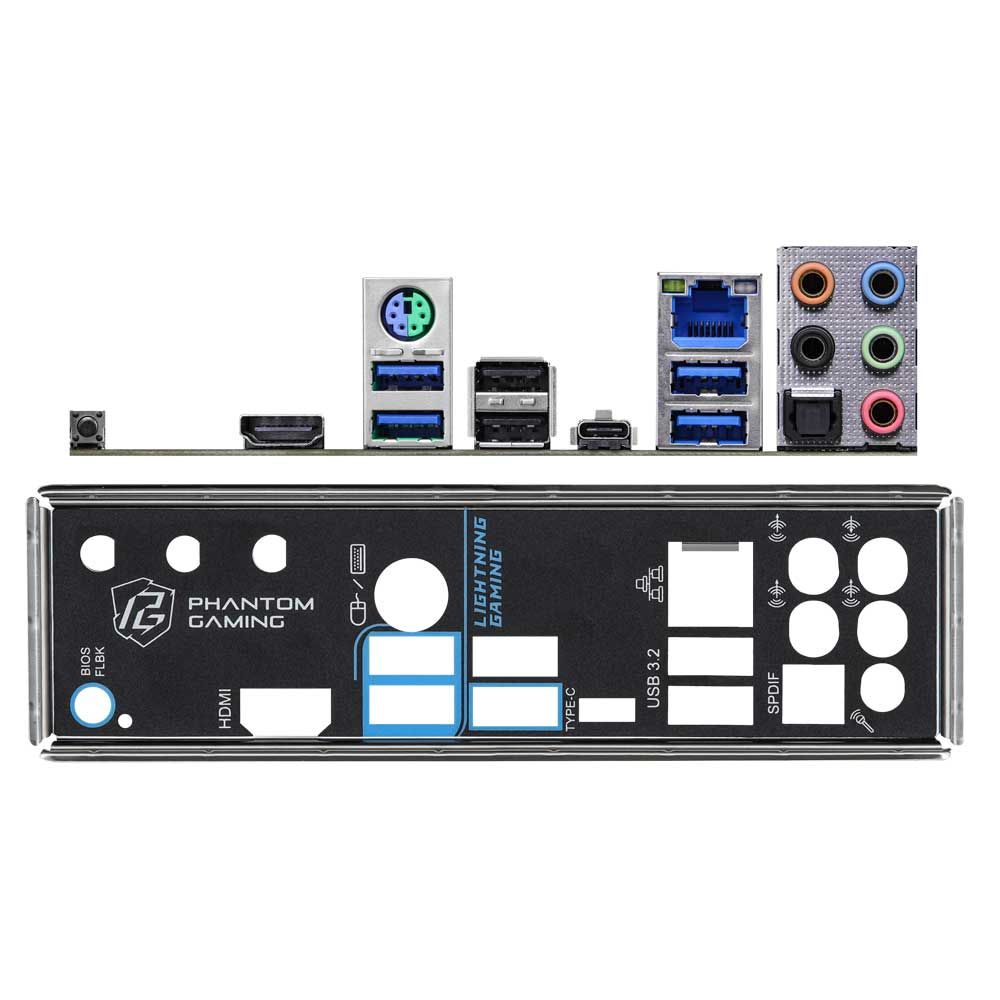

| Anschlüsse Rückseite: | - 3 x Antenna Mounting Points - 1 x PS/2 Mouse/Keyboard Port - 1 x HDMI Port - 1 x Optical SPDIF Out Port - 2 x USB 3.2 Gen2 Type-A Ports (10 Gb/s) (ReDriver) (Supports ESD Protection) - 1 x USB 3.2 Gen2x2 Type-C Port (20 Gb/s) (ReDriver) (Supports ESD Protection) - 2 x USB 3.2 Gen1 Type-A Ports (Supports ESD Protection)* - 2 x USB 2.0 Ports (Supports ESD Protection) - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) - 1 x BIOS Flashback Button - HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks) |
| Anschlüsse intern: | - 1 x SPI TPM Header - 1 x Power LED and Speaker Header - 1 x RGB LED Header* - 3 x Addressable LED Headers** - 1 x CPU Fan Connector (4-pin)*** - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**** - 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)***** - 1 x 24 pin ATX Power Connector - 1 x 8 pin 12V Power Connector (Hi-Density Power Connector) - 1 x 4 pin 12V Power Connector (Hi-Density Power Connector) - 1 x Front Panel Audio Connector - 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card) - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) - 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (ASMedia ASM1074 hub) (Supports ESD Protection) - 1 x Front Panel Type C USB 3.2 Gen1 Header (Supports ESD Protection) - 1 x Clear CMOS Button *Supports in total up to 12V/3A, 36W LED Strip **Support in total up to 5V/3A, 15W LED Strip ***The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power. ****The CPU/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. *****The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. CPU_FAN2/WP and CHA_FAN1~4/WP can auto detect if 3-pin or 4-pin fan is in use. |
| Formfaktor: | ATX Form Factor: 30.5 cm x 24.4 cm |
| unterstütze Betriebssysteme: | - Microsoft® Windows®10 64-bit / 11 64-bit |
