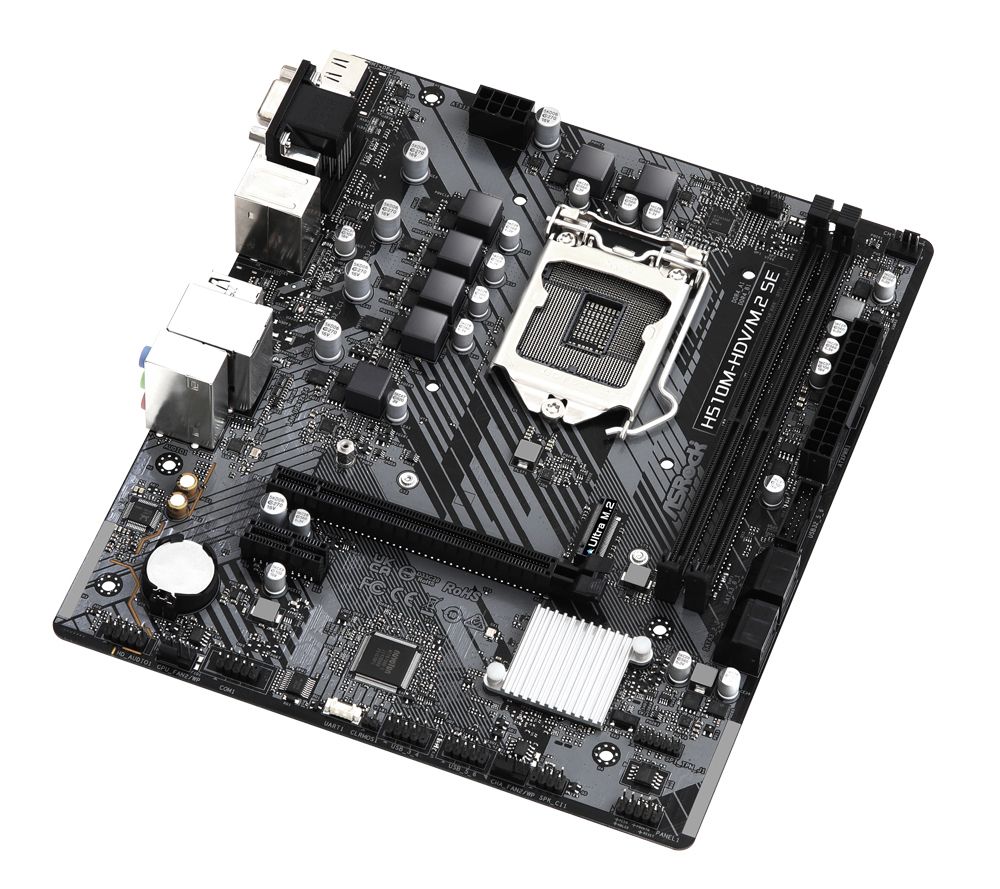

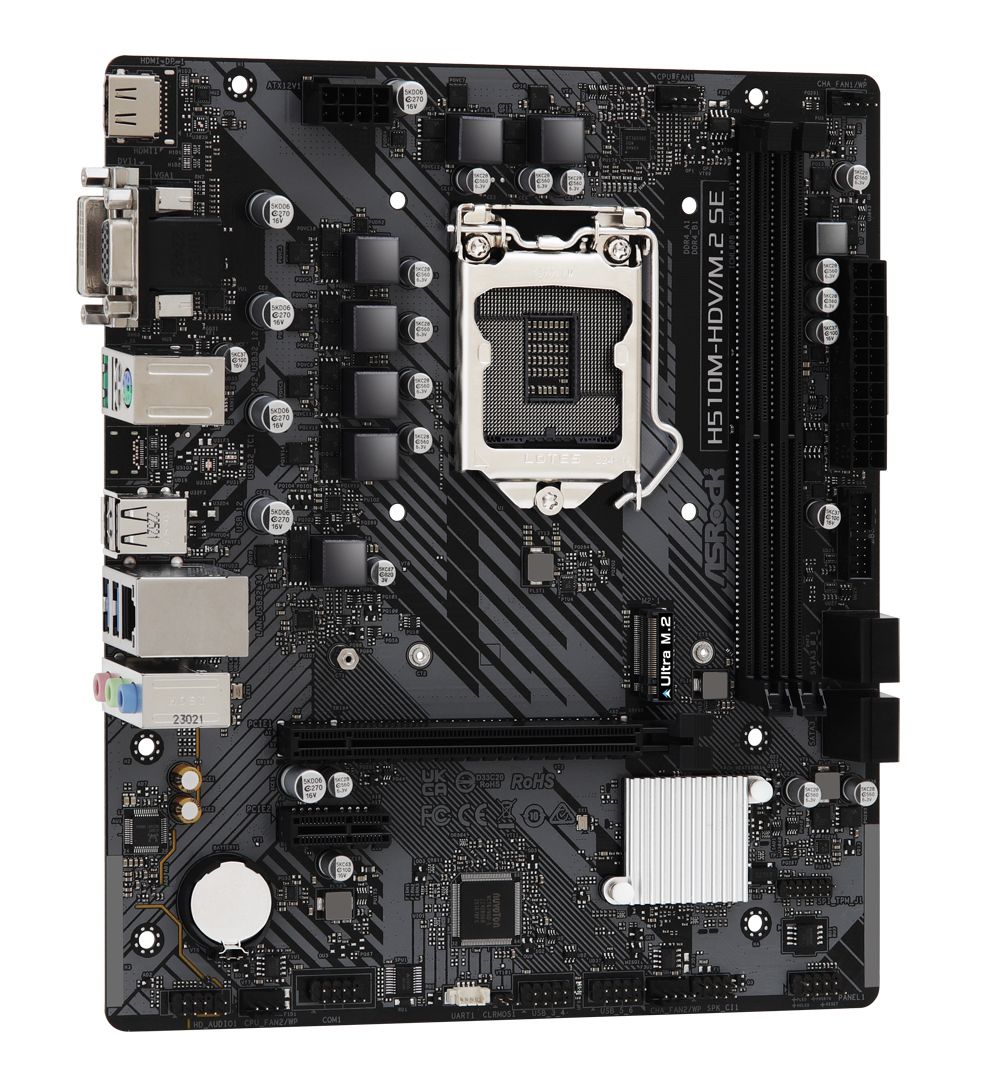

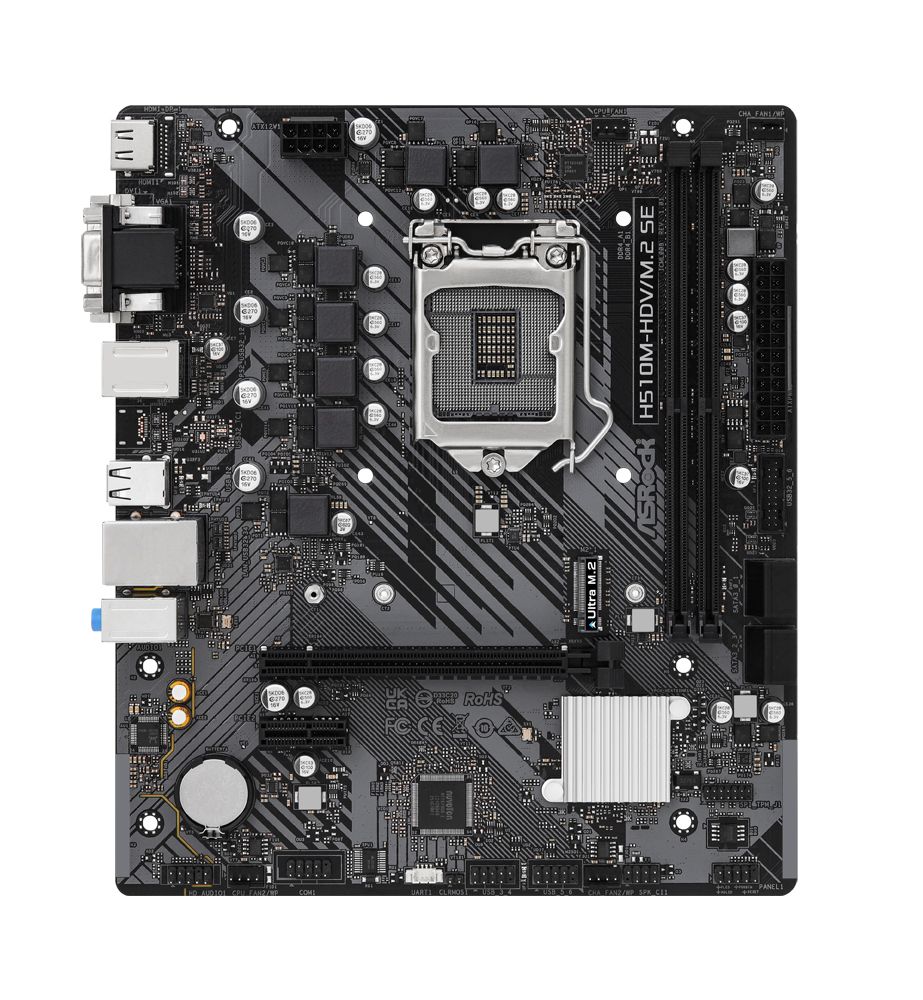

ASRock H510M-HDV/M.2 SE, Intel H470 Chipsatz, µATX
59,99 €
Lieferzeit 1 - 3 Werktage
Produktnummer:
20040851
GTIN/EAN:
4710483943126
Hersteller:
AsRock
Herstellernummer:
90-MXBM00-A0UAYZ
Verantwortlichkeit in der EU:
AsRock
Bijsterhuizen 11-11
6546 AR Nijmegen
Niederlande
Email: sales@asrock.nl
Bijsterhuizen 11-11
6546 AR Nijmegen
Niederlande
Email: sales@asrock.nl
Produktinformationen "ASRock H510M-HDV/M.2 SE, Intel H470 Chipsatz, µATX"
| Prozessor: | - Supports 10th Gen Intel® Core™ Processors and 11th Gen Intel® Core™ Processors (LGA1200) - 5 Power Phase design - Supports Intel® Turbo Boost Max 3.0 Technology |
| Chipsatz: | Intel® H470 |
| Speicher: | - Dual Channel DDR4 Memory Technology - 2 x DDR4 DIMM Slots - Supports DDR4 3200 / 2933 / 2800 / 2666 / 2400 / 2133 non-ECC, un-buffered memory* - Supports ECC UDIMM memory modules (operate in non-ECC mode) - Max. capacity of system memory: 64GB - Supports Intel® Extreme Memory Profile (XMP) 2.0 - 15μ Gold Contact in DIMM Slots *11th Gen Intel® Core™ (i9/i7/i5) support DDR4 3200 natively; Core™ (i3), Pentium® and Celeron® support DDR4 2666 natively. 10th Gen Intel® Core™ (i9/i7) support DDR4 2933 natively; Core™ (i5/i3), Pentium® and Celeron® support DDR4 2666 natively. |
| Grafik: | - 1 x HDMI Intel® 11th Gen Processors support HDMI 2.0, HDCP 2.3 and max. resolution up to 4K 60Hz Intel® 10th Gen Processors support HDMI 1.4, HDCP 2.3 and max. resolution up to 4K 30Hz - 1 x DVI-D, supports HDCP 2.3 and max. resolution up to Full HD (1920x1200) 60Hz - 1 x D-Sub, supports max. resolution up to Full HD (1920x1200) 60Hz *Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated. Graphics specifications may vary between CPU types. |
| Steckplätze: | Intel® 11th Gen & 10th Gen Processors: - 1 x PCIe 4.0 x16 Slot (PCIE1)* Intel® 11th Gen Processors support PCIe 4.0 x16 Intel® 10th Gen Processors support PCIe 3.0 x16 Intel® H470 Chipset: - 1 x PCIe 3.0 x1 Slot (PCIE2)* *Supports NVMe SSD as boot disks |
| Storage: | Chipset: - 1 x Ultra M.2 Socket (M2_1, Key M), supports type 2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes* - 4 x SATA3 6.0 Gb/s Connectors |
| Sound: | - 7.1 CH HD Audio (Realtek ALC897 Audio Codec) |
| LAN: | - Gigabit LAN 10/100/1000 Mb/s |
| USB: | - 6 x USB 3.2 Gen1 (4 Rear, 2 Front) |

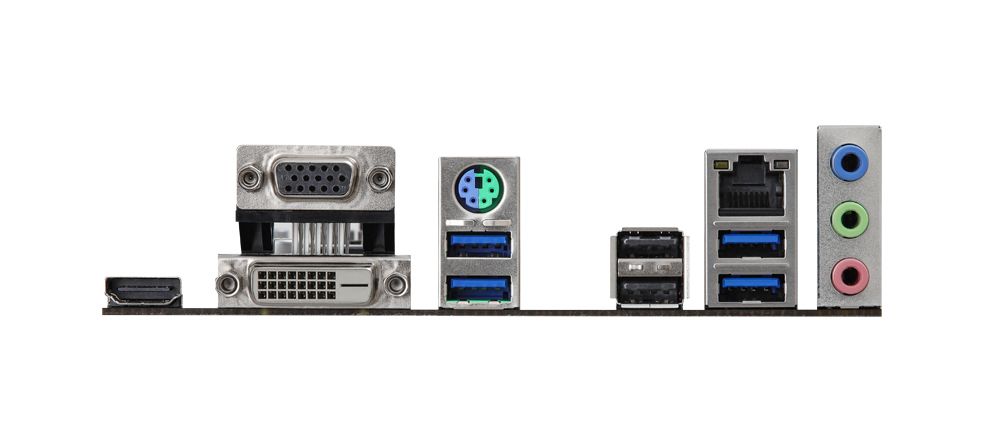

| Anschlüsse Rückseite: | - 1 x PS/2 Mouse/Keyboard Port - 1 x D-Sub Port - 1 x DVI-D Port - 1 x HDMI Port - 2 x USB 2.0 Ports - 4 x USB 3.2 Gen1 Ports - 1 x RJ-45 LAN Port - HD Audio Jacks: Line in / Front Speaker / Microphone |
| Anschlüsse intern: | - 1 x COM Port Header - 1 x SPI TPM Header - 1 x Chassis Intrusion and Speaker Header - 1 x CPU Fan Connector (4-pin)* - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)** - 2 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*** - 1 x 24 pin ATX Power Connector - 1 x 8 pin 12V Power Connector - 1 x Front Panel Audio Connector - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) |
| Formfaktor: | Micro ATX Form Factor: 23.1 cm x 19.8 cm |
| unterstütze Betriebssysteme: | Microsoft® Windows® 10 64-bit / 11 64-bit |
