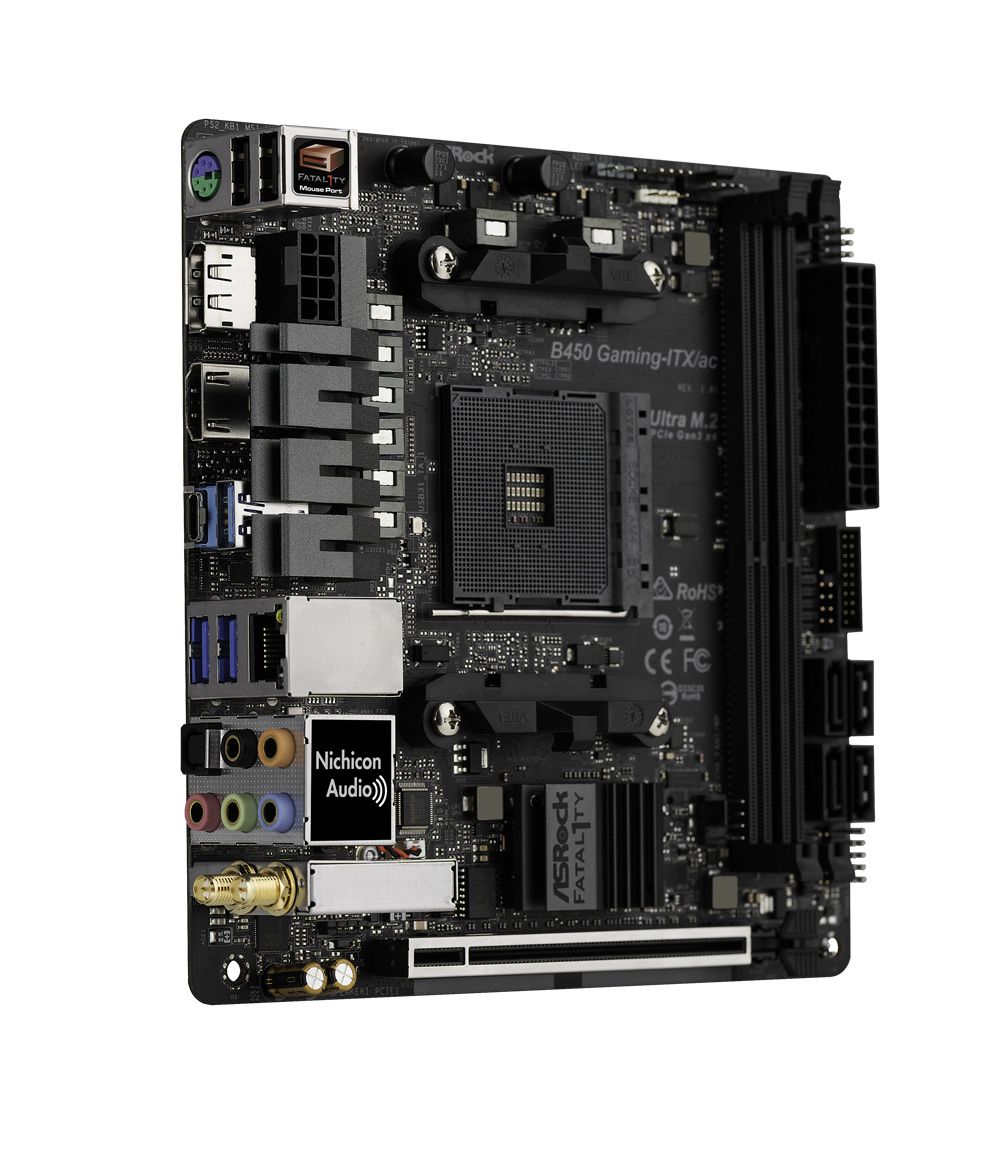

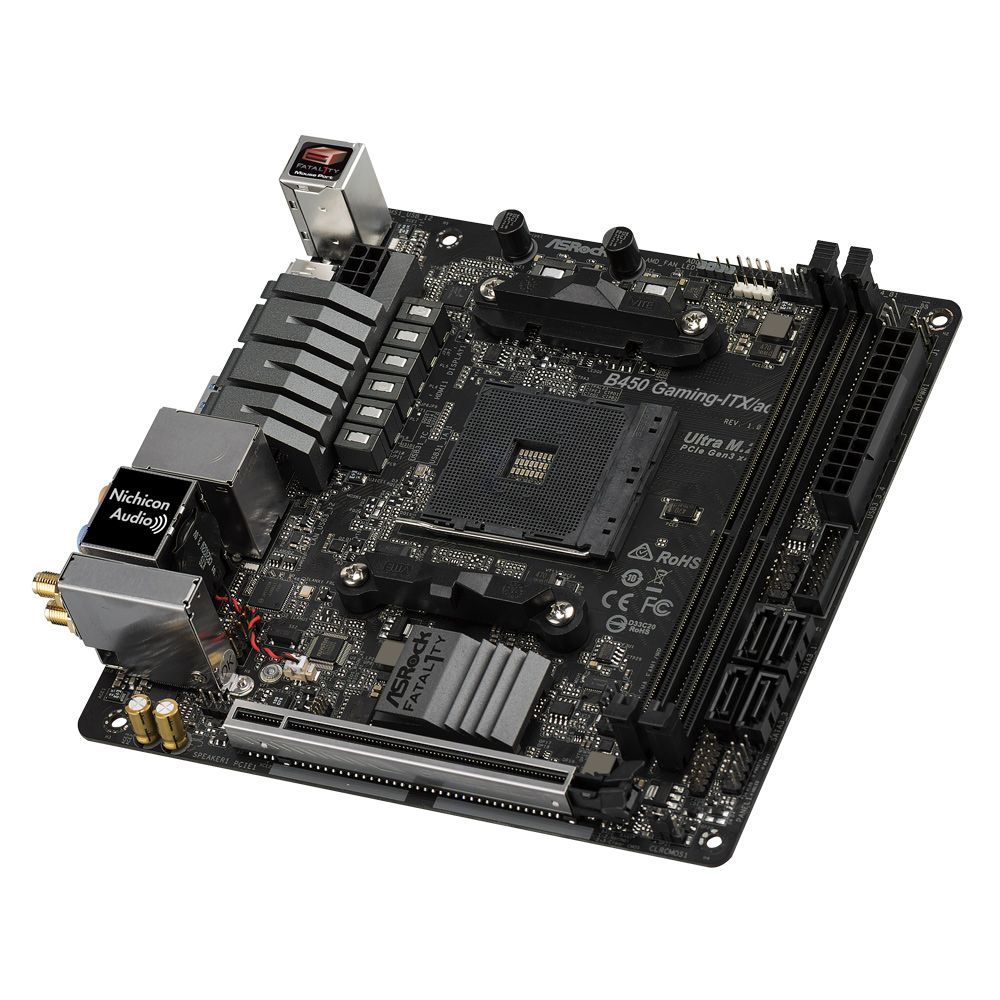

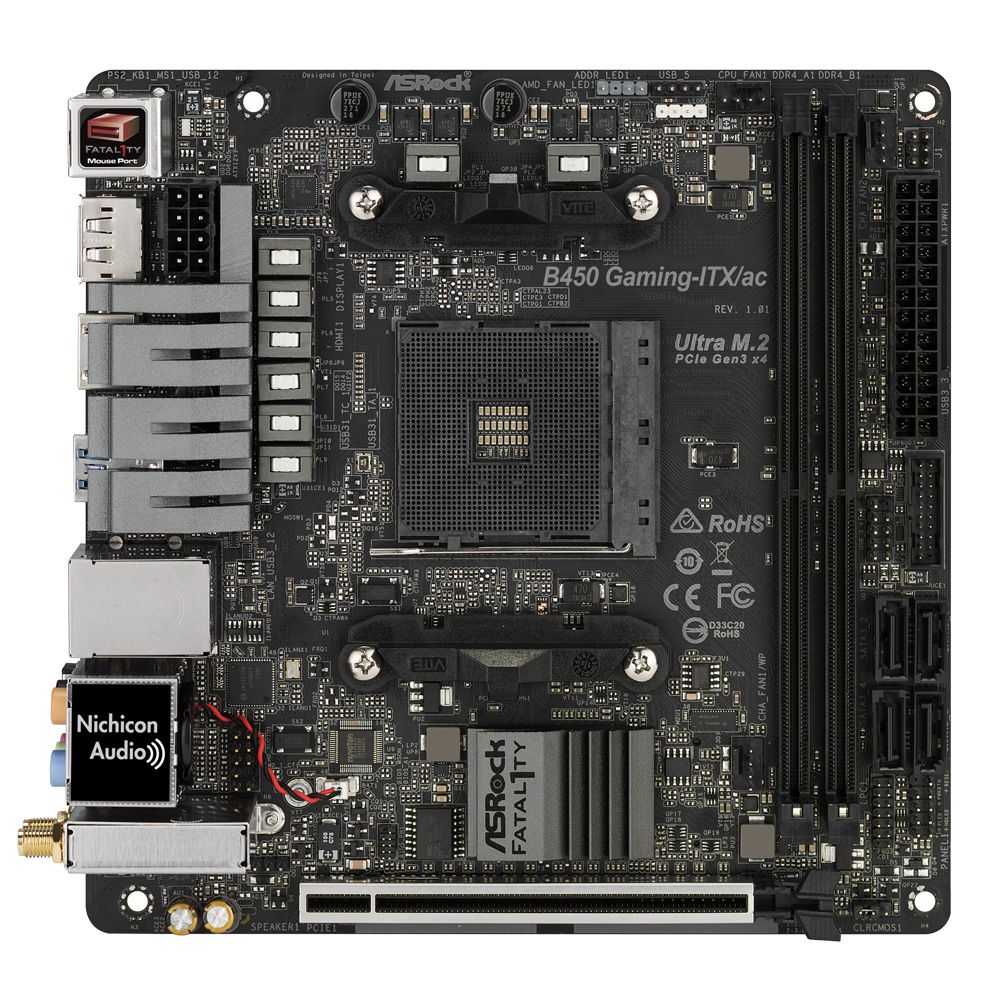

ASRock Fatal1ty B450 Gaming-ITX/ac, AM4, AMD B450, Mini-ITX
114,99 €
nicht lieferbar
Bijsterhuizen 11-11
6546 AR Nijmegen
Niederlande
Email: sales@asrock.nl
Produktinformationen "ASRock Fatal1ty B450 Gaming-ITX/ac, AM4, AMD B450, Mini-ITX"
| Sockel: | AM4 Sockel |
| Prozessor: | - AMD AM4 Socket - Digi Power design - 8 Power Phase design - Supports 105W Water Cooling (Pinnacle Ridge); Supports 95W Water Cooling (Summit Ridge); Supports 65W Water Cooling (Raven Ridge) |
| Chipsatz: | AMD B450 |
| Speicher: | - Dual Channel DDR4 Memory Technology - 2 x DDR4 DIMM Slots - AMD Ryzen series CPUs (Pinnacle Ridge) support DDR4 3466+(OC) / 3200(OC) / 2933/2667/2400/2133 ECC & non-ECC, un-buffered memory* - AMD Ryzen series CPUs (Summit Ridge) support DDR4 3466+(OC) / 3200(OC) / 2933(OC) / 2667/2400/2133 ECC & non-ECC, un-buffered memory* - AMD Ryzen series CPUs (Raven Ridge) support DDR4 3466+(OC) / 3200(OC) / 2933(OC) / 2667/2400/2133 non-ECC, un-buffered memory* - Max. capacity of system memory: 32GB** - 15μ Gold Contact in DIMM Slots |
| Grafik: | - Integrated AMD Radeon™ Vega Series Graphics in Ryzen Series APU* *Actual support may vary by CPU |
| Steckplätze: | AMD Ryzen series CPUs (Summit Ridge and Pinnacle Ridge) *Supports PCIe riser cards to extend one x16 slot to two x8 slots if you install AMD Ryzen series CPUs Supports NVMe SSD as boot disks |
| Storage: | - 4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug *Supports NVMe SSD as boot disk |
| Sound: | - 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec) - Premium Blu-ray Audio support - Supports Surge Protection - Nichicon Fine Gold Series Audio Caps - 120dB SNR DAC with Differential Amplifier - Pure Power-In - Direct Drive Technology - PCB Isolate Shielding - Impedance Sensing on Rear Out port - Individual PCB Layers for R/L Audio Channel - Gold Audio Jacks - Supports Creative Sound Blaster™ Cinema 5 |
| LAN: | - Gigabit LAN 10/100/1000 Mb/s - GigaLAN Intel® I211AT - Supports Wake-On-LAN - Supports Lightning/ESD Protection - Supports Energy Efficient Ethernet 802.3az - Supports PXE |
| WLAN: | - Intel® 802.11ac WiFi Module - Supports IEEE 802.11a/b/g/n/ac - Supports Dual-Band (2.4/5 GHz) - Supports high speed wireless connections up to 433Mbps - Supports Bluetooth 4.2 / 3.0 + High speed class II |
| Interne I/O Anschlüsse: | - 1 x LPC Header - 1 x Addressable LED Header* - 1 x AMD Fan LED Header** - 1 x CPU Fan Connector (4-pin)*** - 2 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)**** - 1 x 24 pin ATX Power Connector - 1 x 8 pin 12V Power Connector (Hi-Density Power Connector) - 1 x Front Panel Audio Connector (15μ Gold Audio Connector) - 1 x AMD LED Fan USB Header - 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection) - 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection) *Supports in total up to 5V/3A, 15W LED Strip **The AMD Fan LED Header supports LED strips of maximum load of 3A (36W) and length up to 2.5M. ***The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power. ****The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. CHA_FAN1/WP and CHA_FAN2/WP can auto detect if 3-pin or 4-pin fan is in use. |

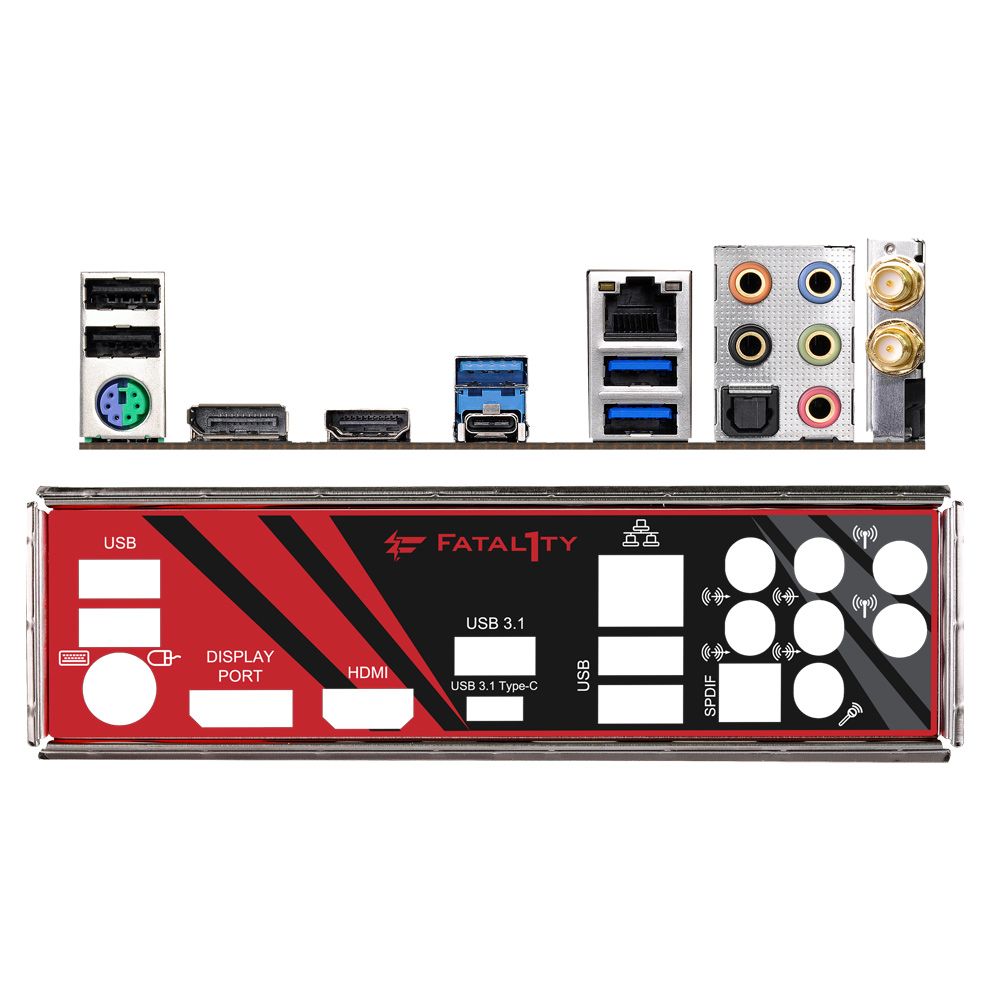

| Rückseite I/O Panel: | - 2 x Antenna Ports - 1 x PS/2 Mouse/Keyboard Port - 1 x HDMI Port - 1 x DisplayPort 1.2 - 1 x Optical SPDIF Out Port - 2 x USB 2.0 Ports (Supports ESD Protection)* - 1 x USB 3.1 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection) - 1 x USB 3.1 Gen2 Type-C Port (10 Gb/s) (Supports ESD Protection) - 2 x USB 3.1 Gen1 Ports (Supports ESD Protection) - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) - HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks) *1 x Fatal1ty Mouse Port (USB 2.0) is included |
| Formfaktor: | Mini-ITX |
| Abmessungen : | 17.0 cm x 17.0 cm |
| unterstützte BS : | - Microsoft® Windows® 10 64-bit |
