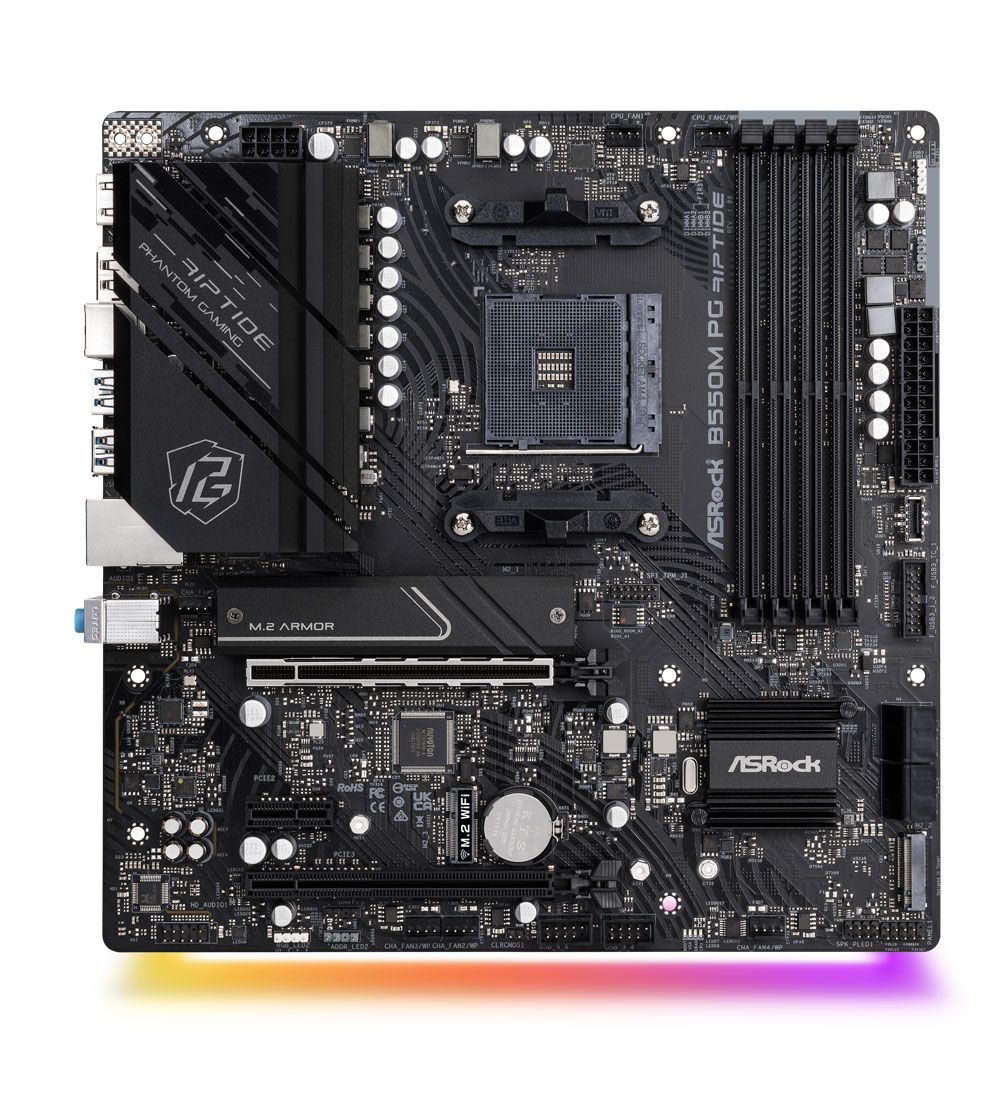

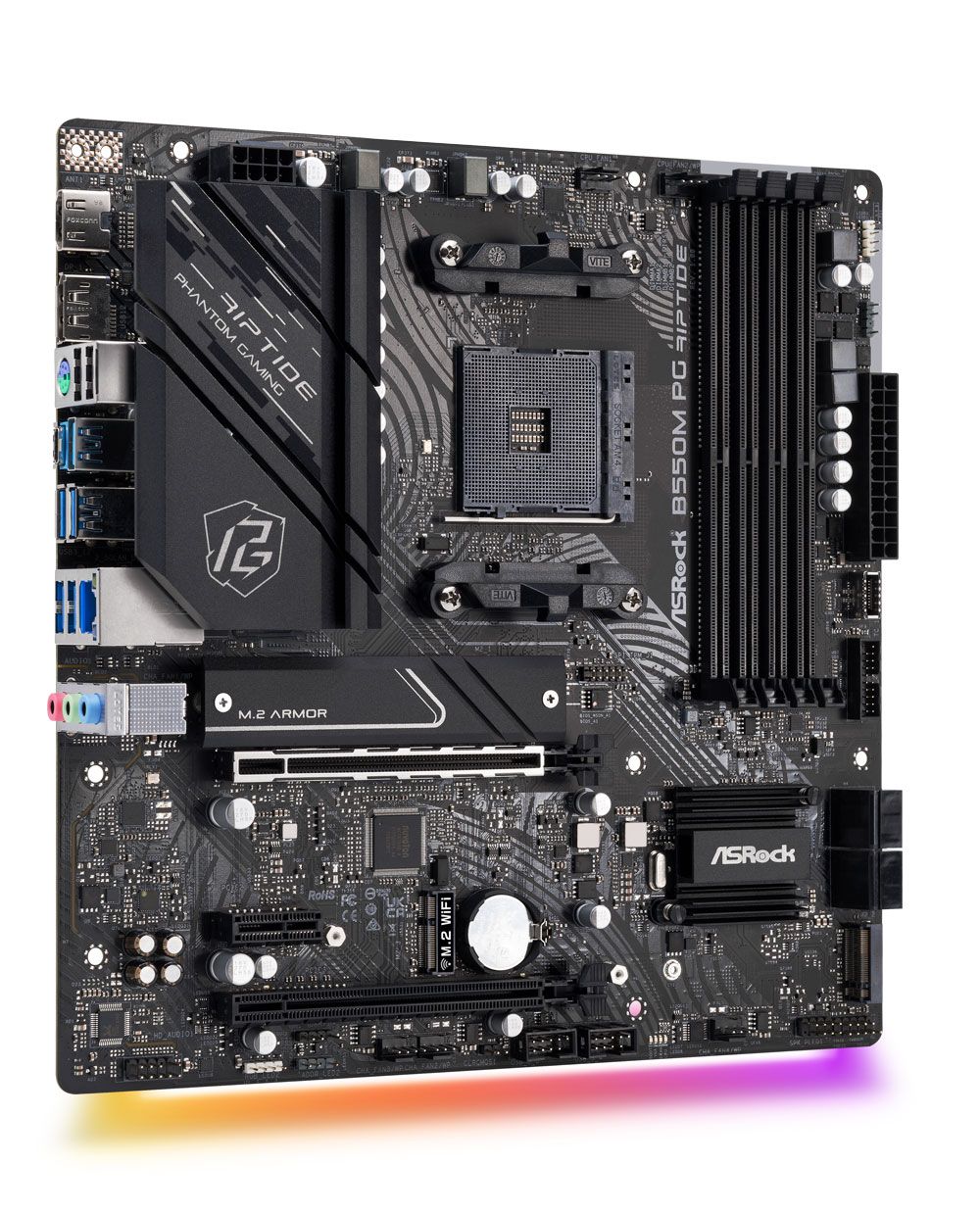

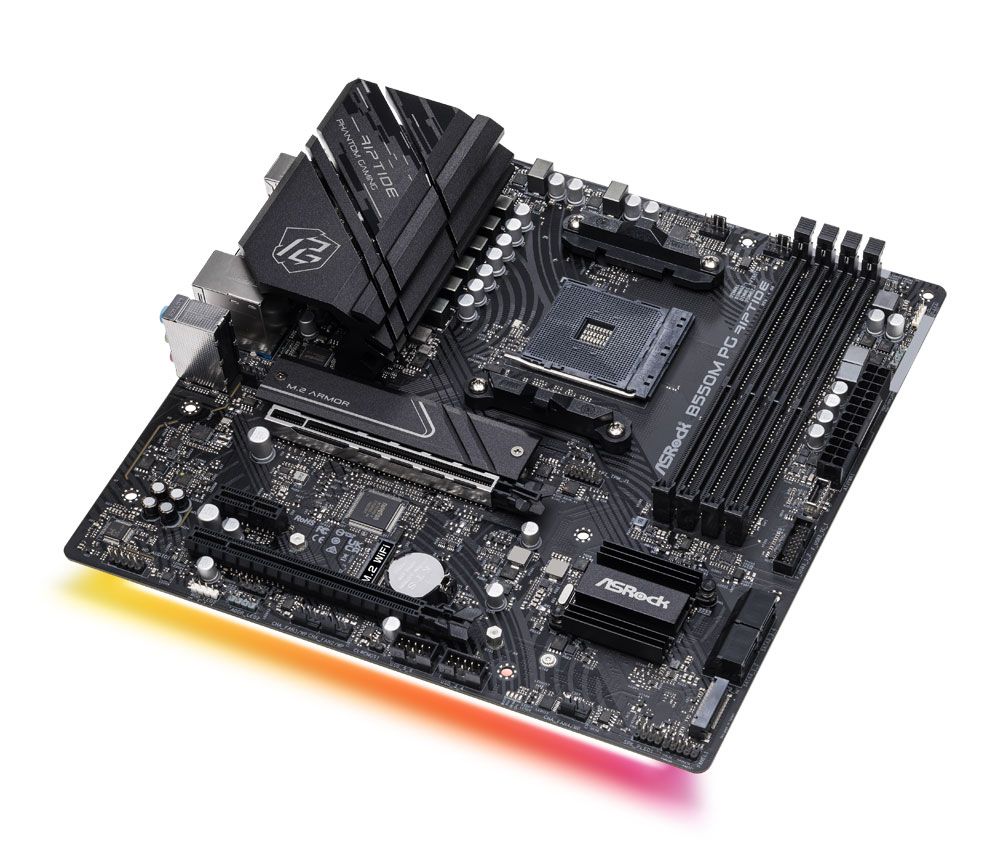

ASRock B550M PG Riptide, AM4, AMD B550, µATX
116,99 €
nicht lieferbar
Bijsterhuizen 11-11
6546 AR Nijmegen
Niederlande
Email: sales@asrock.nl
Produktinformationen "ASRock B550M PG Riptide, AM4, AMD B550, µATX"
| Sockel: | AM4 Sockel |
| Prozessor: | - Supports AMD AM4 Socket Ryzen™ 3000, 3000 G-Series, 4000 G-Series, 5000 and 5000 G-Series Desktop Processors* - Digi Power design - 8 Power Phase design *Not compatible with AMD Athlon™ Processors. |
| Chipsatz: | AMD B550 |
| Speicher: | - Dual Channel DDR4 Memory Technology - 4 x DDR4 DIMM Slots - AMD Ryzen series CPUs (Vermeer) support DDR4 4600+(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory* - AMD Ryzen series CPUs (Matisse) support DDR4 4600+(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory* - AMD Ryzen series APUs (Cezanne) support DDR4 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory* - AMD Ryzen series APUs (Renoir) support DDR4 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory* - AMD Ryzen series APUs (Picasso) support DDR4 3333+(OC) / 3200(OC) / 2933 / 2667 / 2400 / 2133 non-ECC, un-buffered memory* - Max. capacity of system memory: 128GB - Supports Extreme Memory Profile (XMP) memory modules - 15μ Gold Contact in DIMM Slots |
| Grafik: | - Integrated AMD Radeon™ Vega Series Graphics in Ryzen Series APU* *Actual support may vary by CPU **The Max shared memory 16GB requires 32GB system memory installed. ***Picasso supports HDCP 2.2 with HDMI 2.0 Port |
| Steckplätze: | AMD Ryzen series CPUs (Vermeer and Matisse) *Supports NVMe SSD as boot disks |
| Storage: | - 4 x SATA3 6.0 Gb/s Connectors - 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode (with Vermeer, Matisse) or Gen3x4 (32 Gb/s) mode (with Cezanne, Renoir and Picasso)* - 1 x M.2 Socket (M2_2, Key M), supports type 2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x2 (16 Gb/s) modes* *Supports NVMe SSD as boot disks Supports ASRock U.2 Kit |
| Sound: | - 7.1 CH HD Audio (Realtek ALC897 Audio Codec) - Supports Surge Protection - Nahimic Audio |
| LAN: | - 2.5 Gigabit LAN 10/100/1000/2500 Mb/s - Dragon RTL8125BG - Supports Phantom Gaming LAN Software - Smart Auto Adjust Bandwidth Control - Visual User Friendly UI - Visual Network Usage Statistics - Optimized Default Setting for Game, Browser, and Streaming Modes - User Customized Priority Control - Supports Wake-On-LAN - Supports Lightning/ESD Protection - Supports Energy Efficient Ethernet 802.3az - Supports PXE |
| Interne I/O Anschlüsse: | - 1 x SPI TPM Header - 1 x Power LED and Speaker Header - 2 x RGB LED Headers* - 2 x Addressable LED Headers** - 1 x CPU Fan Connector (4-pin)*** - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**** - 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)***** - 1 x 24 pin ATX Power Connector - 1 x 8 pin 12V Power Connector - 1 x Front Panel Audio Connector - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection) - 1 x Front Panel Type C USB 3.2 Gen1 Header (Supports ESD Protection) *Support in total up to 12V/3A, 36W LED Strip **Support in total up to 5V/3A, 15W LED Strip ***The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power. ****The CPU/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. *****The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. CPU_FAN2/WP, CHA_FAN1/WP, CHA_FAN2/WP, CHA_FAN3/WP and CHA_FAN4/WP can auto detect if 3-pin or 4-pin fan is in use. |

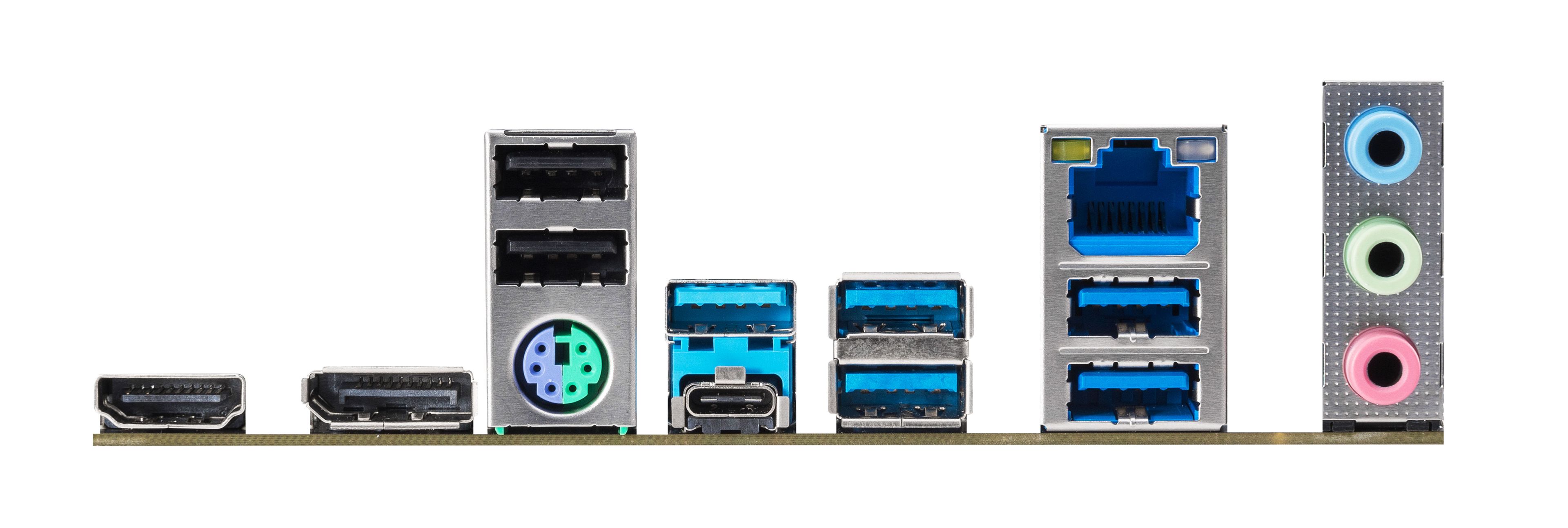

| Rückseite I/O Panel: | - 2 x Antenna Mounting Points - 1 x PS/2 Mouse/Keyboard Port - 1 x HDMI Port - 1 x DisplayPort 1.4 - 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection) - 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (Supports ESD Protection) - 4 x USB 3.2 Gen1 Ports (Supports ESD Protection) - 2 x USB 2.0 Ports (Supports ESD Protection)* - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) - HD Audio Jacks: Line in / Front Speaker / Microphone *USB12 are the Lightning Gaming Ports. |
| Formfaktor: | Micro-ATX |
| Abmessungen : | 24.4 cm x 24.4 cm |
| unterstützte BS : | - Microsoft® Windows® 10/11 64-bit |
